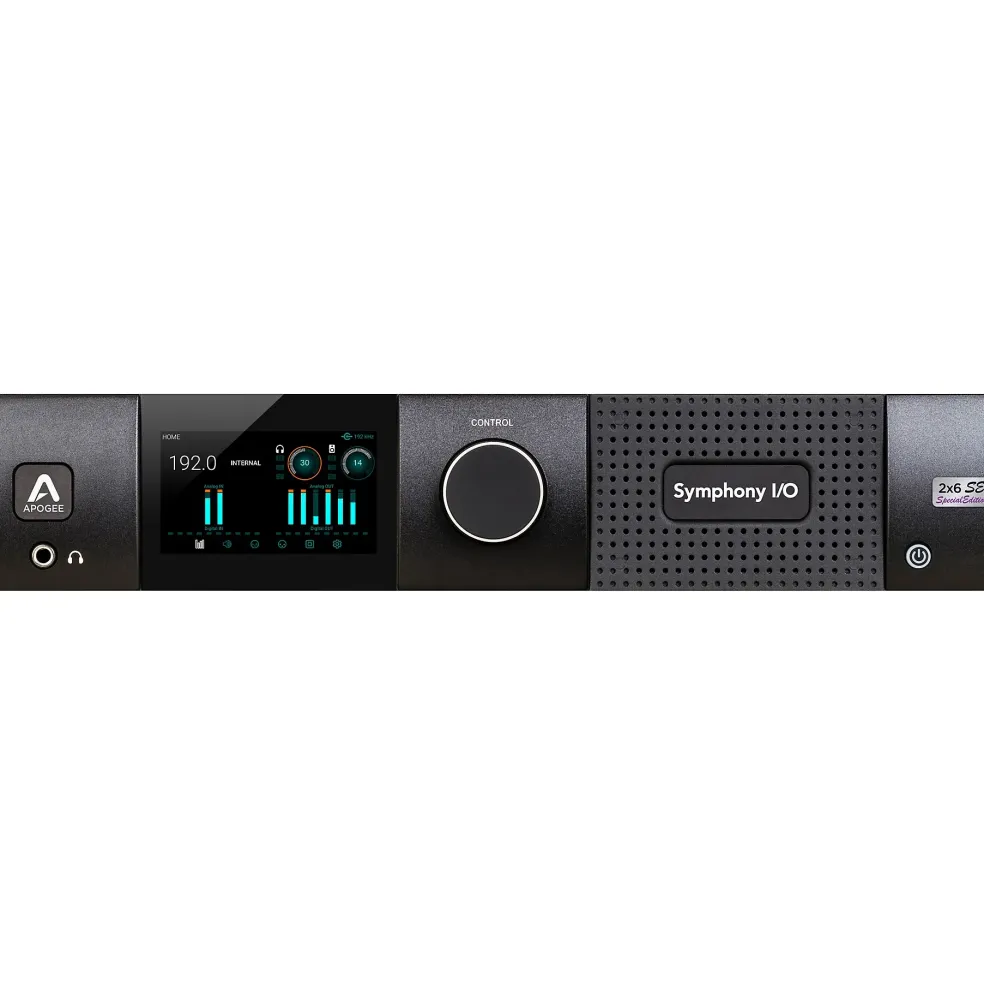

This version of the Symphony I/O Mk II is designed for the Pro Tools HD user who needs a multi-channel audio interface with the best sound quality. Whether using a Mac or PC based studio, Symphony I/O Mk II HD can connect directly to your Pro Tools HDX, Pro Tools HD Native or Pro Tools Core/Accel systems. The 2Ć6 SE takes advantage of the latest advancements in digital and analog audio technology to offer inputs with 124 dB of dynamic range, THD+N of -116dB and outputs with 131dB dynamic range and an astonishingly low THD+N of -118dB.
A new control experience
Symphony Control has been built from the ground up and replaces Apogeeās Maestro software for Symphony I/O Mk II users. Symphony Control delivers all the functionality of Maestro in a new, highly customizable user interface along with innovative new features like Talkback functionality, the simplified āEssentialsā control window and an FX Send mixer feature, recently introduced as part of the Element Control software.
- Ultra-low latency
- Intuitive touchscreen
- Future-proof modularity
- Pro Tools HD connectivity
- Designed in California, Built in the U.S.A.
- Original Symphony I/O modules are compatible with new Mk II chassis
- Max bit depth:24-bit
- Max sampling rate:192 kHz
- Frequency response:Not Specified
Inputs
- Total inputs: 13
- Analog inputs:2
- Digital inputs: 11
- Mic preamps:0
- XLR/TRS combo jacks:0
- XLR only jacks:2
- 1/4ā only jacks:0
- DB25:0
- S/PDIF in: 2
- ADAT/optical in:8
- RCA in:0
- AES/EBU:1
- MADI:0
- Dante:0
Outputs
- Total outputs: 11
- Analog outputs:1
- Digital outputs:10
- XLR out:0
- 1/4ā out:0
- DB25:1
- S/PDIF out: 2
- ADAT/optical out:8
- RCA out:0
- AES / EBU:0
- MADI: 0
- Dante:0
Other Connectivity
- Connections: Thunderbolt
- MIDI I/O:Not Specified
- Headphone output(s):Not Specified
- Word-clock I/O:Not Specified
Onboard Features
- Computer platform:No
- Phantom power: Yes
- Direct monitoring:No
- Onboard DSP:Yes
- Metering: Yes
- Display: Yes
- Latency control:No
- Monitor control: Yes
- Headphone control: Yes
Other
- Width:19″
- Height:3.5″
- Depth: 11.5″
- Weight:Not Specified
- Rack-mountable:Yes
- Included software: YesāSymphony Control
