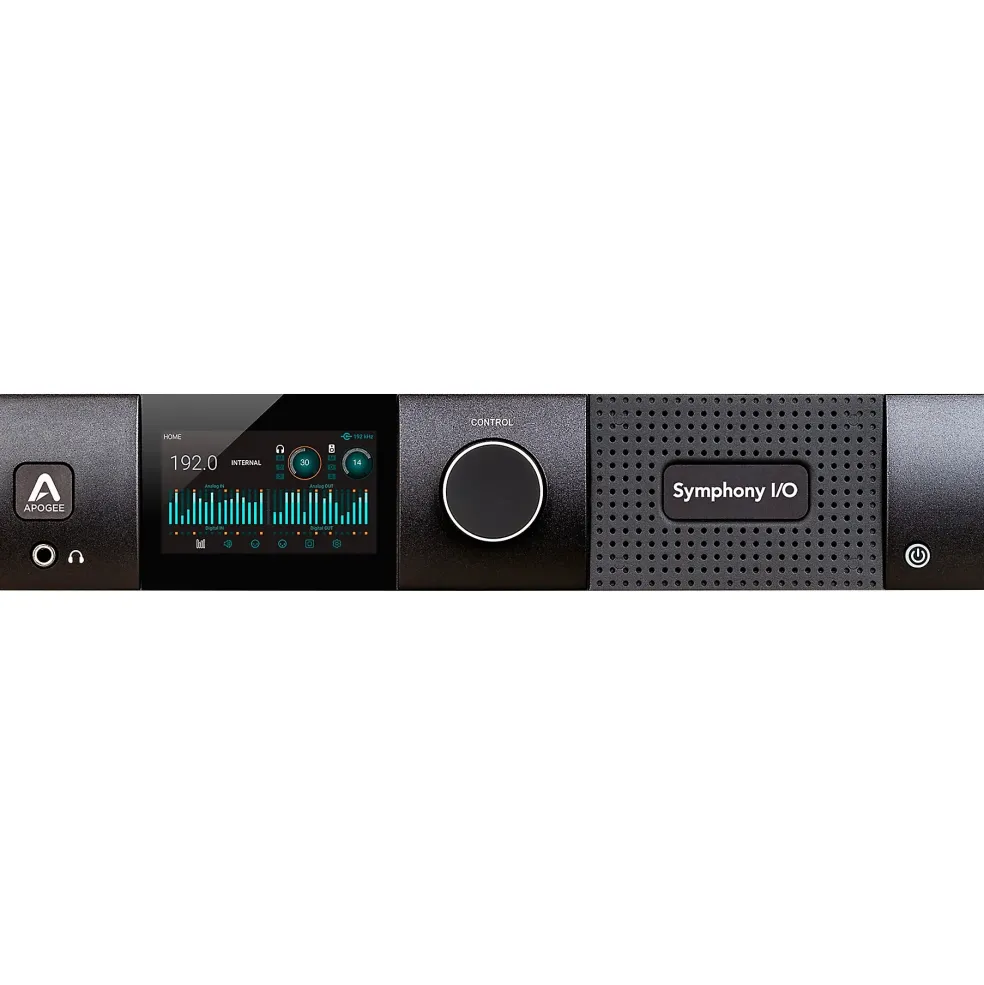

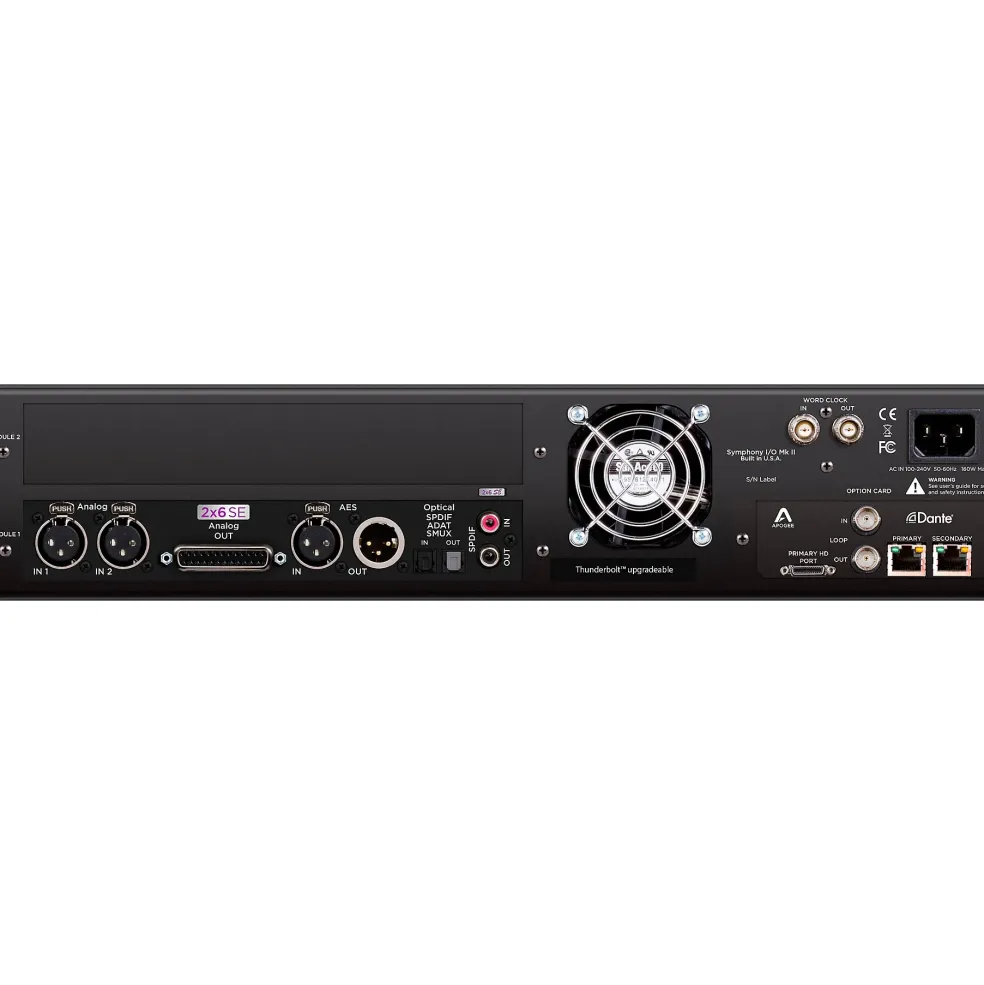

Apogee Symphony I/O MKII Dante Chassis with 2x6 Analog I/O + 8x8 Optical + AES I/O + 2-Ch S/PDIF

Apogee Symphony I/O MKII Dante Chassis with 2×6 Analog I/O + 8×8 Optical + AES I/O + 2-Ch S/PDIF

Original price was: $5,475.00.Current price is: $120.89.

SKU: SKU1500000278856 Categories: Audio Interfaces, Recording Tag: Apogee Brand: Apogee

Description
Reviews (0)

Symphony I/O Mk II is a multi-channel audio interface featuring Apogee’s flagship AD/DA conversion, modular, configurable I/O (up to 32 inputs and outputs), intuitive touchscreendisplay and optional world-class microphone preamps. Designed to deliver professional sound quality for audio recording, mixing and mastering, Symphony I/O Mk II is the ultimate music production centerpiece for any modern studio. And now, with the Symphony I/O Mk II Dante option card and a simple ethernet cable, Symphony I/O Mk II can be easily connected and

shared across post production, broadcast, live sound or recording studio networks, unleashing legendary sound quality on the world’s most popular audio-over-IP solution. The Symphony I/O Mk II Dante option card also includes Pro Tools HD connectivity for integration of Pro Tools HD systems into a Dante network environment. No other Dante-enabled audio interface offers this level of quality, flexibility and modularity.

Ultimate Sound Quality – Features Apogee’s Flagship AD/DA conversion and I/O Flexibility – Up to 32 channels of analog inputs and outputs per unit with 8 mic preamp module
Pro Tools HD Peripheral Port – up to 32 bidirectional channels up to 192kHz. Route Symphony I/O module inputs or Dante Rx to Pro Tools inputs by blocks of 8 channels. Pro Tools HD outputs are routed to Dante Tx and I/O module outputs
The most interoperable networking technology: Works seamlessly with any other Dante-powered device
Up to 32 bidirectional channels at 96kHz – 16 bi-directional channels at 192kHz
Apogee Network Control software – Remote control of Symphony I/O settings, including mic pre, calibration and monitor controls – for macOS and Windows 10

Analog to Digital: THD+N: -115dB @ 22dBu (0.00020%) unweighted
Dynamic range: 122dB A weighted
Maximum input levels: +4dB setting: +24dBu
-10dB setting: +6dBV
Frequency response at 44.1kHz: 1-20,000 Hz (+/- 0.05dB)
Input impedance: 10K
Digital to Analog: THD+N: -119dB @ 21dBu (0.00014%) unweighted
Dynamic Range: 126dB A weighted
Max output levels – ∞ to +24dBu
Frequency response at 44.1 kHz: dc to 20kHz (+/- 0.05dB)
Output impedance: 50 Ohm
Outputs are balanced through Apogee’s proprietary Perfect Symmetry Circuitry (PSC)
Headphone Output: 1 stereo 1/4″ headphone output on front panel
THD+N: -110dB @19dBu into 600 Ohm (=80mW)
-101dB @14dBu into 32 Ohm (=470mW)
Dynamic Range: 121db A weighted
Output: Apogee’s proprietary Constant Current Drive™ provides smooth frequency response with any headphones
Power: 90-240VAC, 50-60Hz, 150W
Operating System: Thunderbolt: Mac OS only 10.10 and above
HD: Any Mac or PC running Pro Tools HD 9 or greater
Software Compatibility: Thunderbolt: Logic Pro or any Core Audio compatible application on Mac OS X
HD: Pro Tools HD 9 or greater
Package Contents: Symphony I/O Mk II Interface
Power Cable
Quick Start Guide
Warranty Booklet
Symphony I/O Mk II Dimensions:
Inches: 17.75 (19 with Rack Ears) x 11.5 x 3.5
Centimeters: 45 (48.26 with Rack Ears) x 29.2 x 8.9
I/O Module Box
Inches: 13.75 x 12.25 x 3.25
Centimeters: 34.9 x 31.1 x 8.3
