The AT8024 also comes equipped with a three-position adjustable input pad (-20 dB, -10 dB, 0 dB) to capture even soft and very loud sound passages without distortion. A switchable low-frequency roll-off reduces pickup of undesired ambient noise, room reverberation and mechanically coupled vibrations. The microphone is powered by a single AA battery for optimal performance with high max SPL, and features an integral camera shoe mount that attaches quickly to DSLRs and shoe-equipped camcorders.

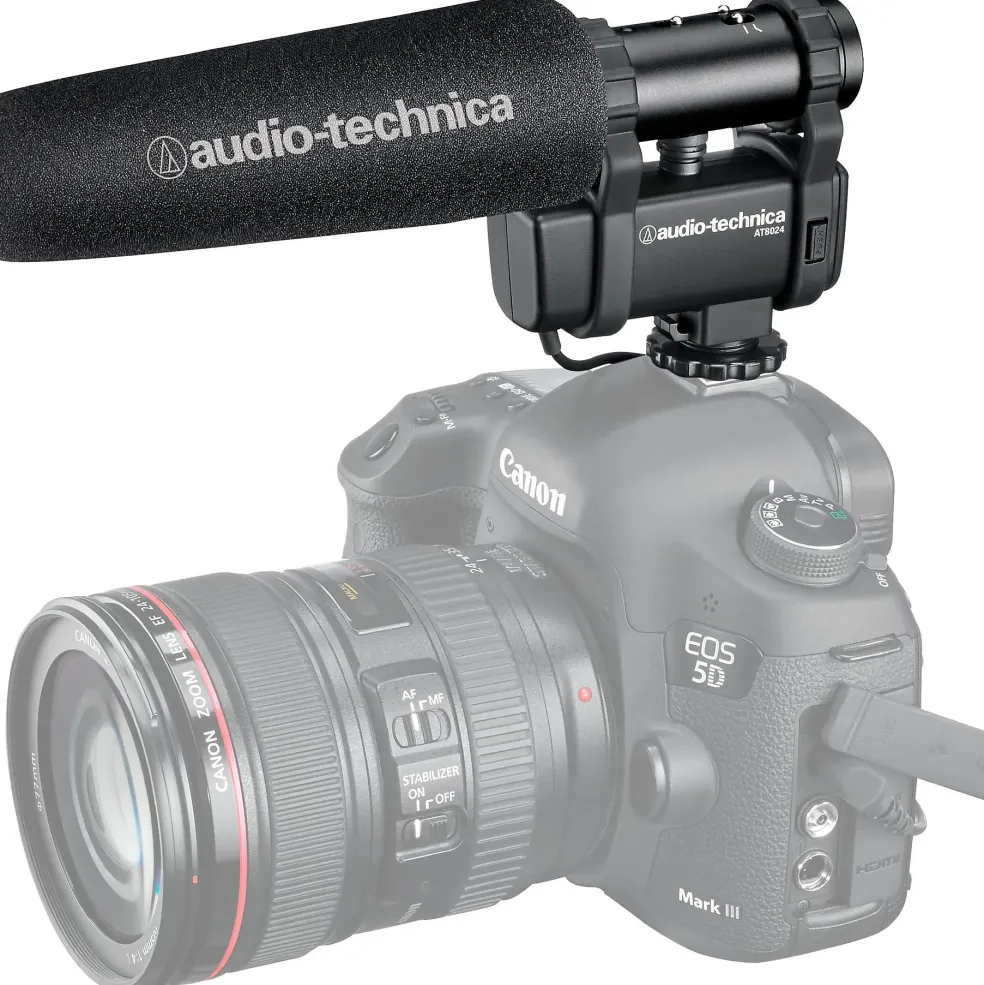

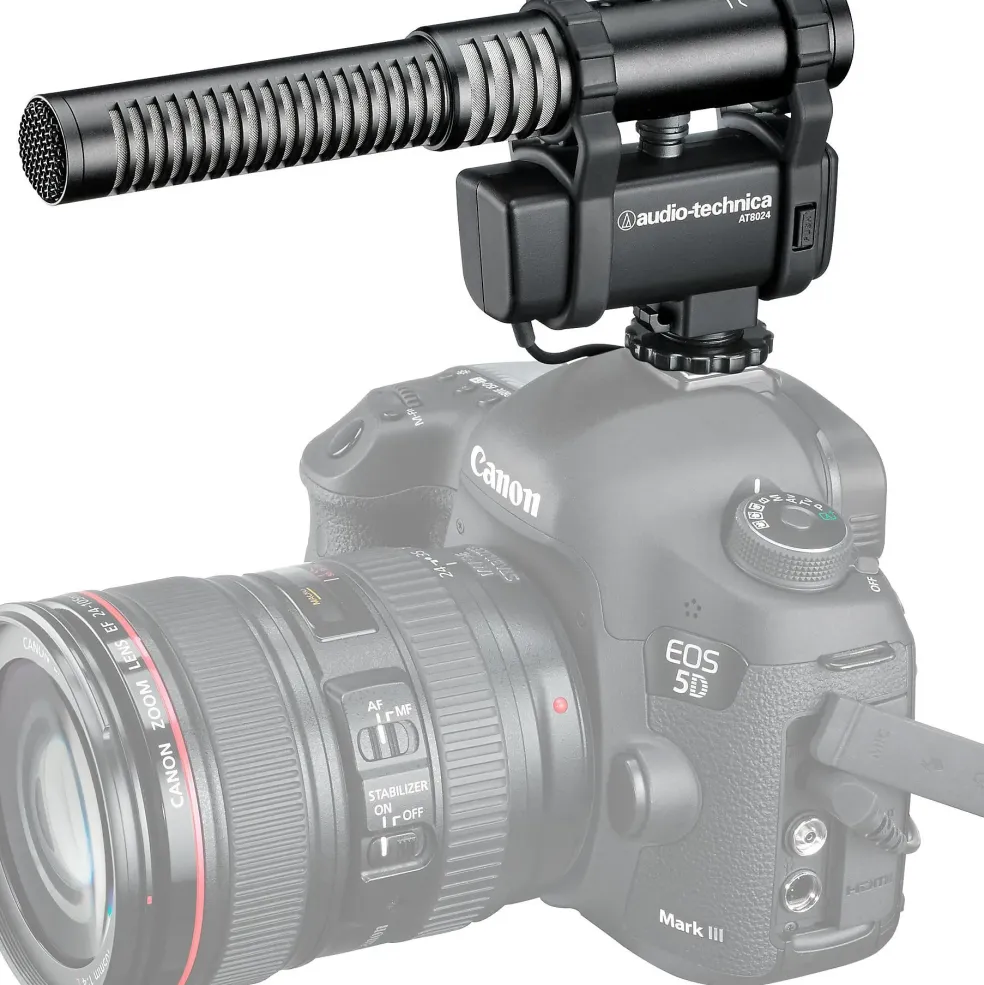

- Designed for use with DSLR and other video cameras, delivering dramatically better sound quality than the camera’ internal microphone
- Selectable line-cardioid mono or mid-side stereo modes provide the flexibility to capture high-resolution audio in any environment
- Handles loud sound sources without distortion
- Three-position adjustable input pad and switchable low-frequency roll-off
- Integral rubber shock mounts isolate the microphone from vibration and mechanical camera noise
- Compact, lightweight design with integral shoe mount
- Red/green LED power indicator

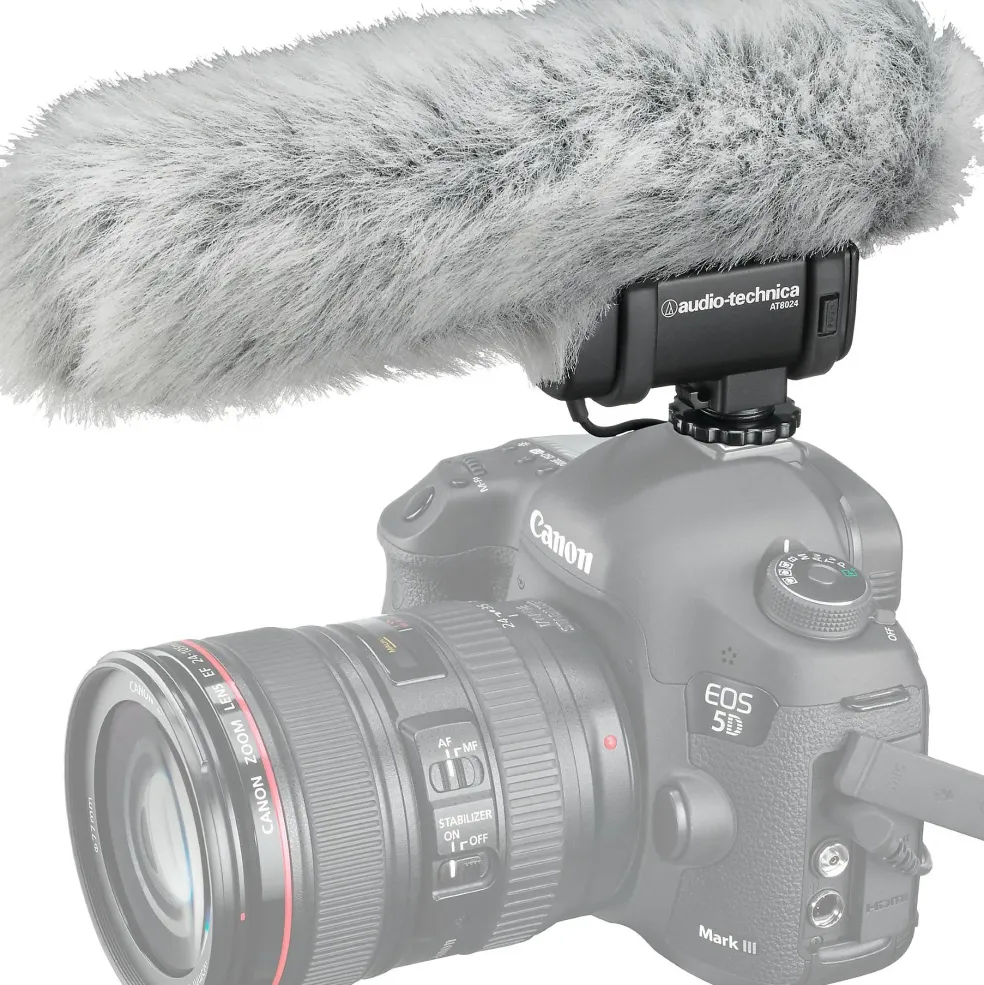

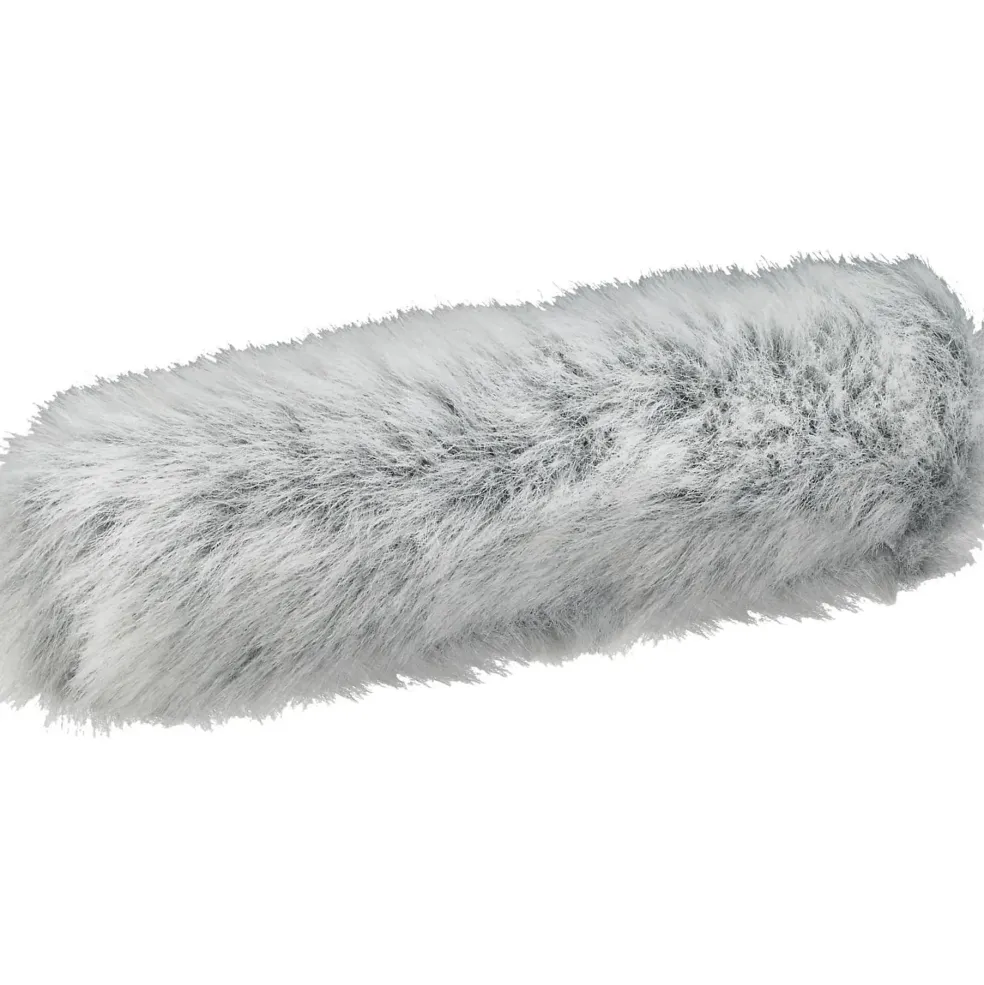

- Includes windscreen, fuzzy windscreen and AA battery
- ELEMENTS Fixed-charge back plate,
- permanently polarized condenser
- POLAR PATTERNS Line-cardioid, LR stereo
- FREQUENCY RESPONSE 40-15,000 Hz
- LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
- OPEN CIRCUIT SENSITIVITY “37 dB (14.1 mV) re 1V at 1 Pa (Mono & LR Stereo)
- IMPEDANCE 50 ohms
- MAXIMUM INPUT SOUND LEVEL 128 dB SPL, 1 kHz at 1% T.H.D.;
- 148 dB SPL, with 20 dB pad
- DYNAMIC RANGE (typical) Mono: 106 dB, 1 kHz at Max SPL;
- Stereo: 104 dB, 1 kHz at Max SPL
- SIGNAL-TO-NOISE RATIO Mono: 72 dB, 1 kHz at 1 Pa;
- Stereo: 70 dB, 1 kHz at 1 Pa
- BATTERY TYPE Type: One 1.5V AA (included);
- Life: 100 hours, typical
- SWITCHES Mono, M-S Stereo;
- Three-position input pad;
- Flat, roll-off
- WEIGHT 114 g (4.0 oz)
- DIMENSIONS 172.0 mm (6.77″) long,
- 24.0 mm (0.94″) maximum body diameter
- OUTPUT CONNECTOR 3.5 mm stereo mini-plug on cable
- CABLE Permanently attached 0.2 m -1 m (7.8″- 39.3″) coiled cable with right-angle molded 3.5 mm stereo mini-plug at output end
- ACCESSORIES FURNISHED Windscreen; fuzzy windscreen; AA battery
