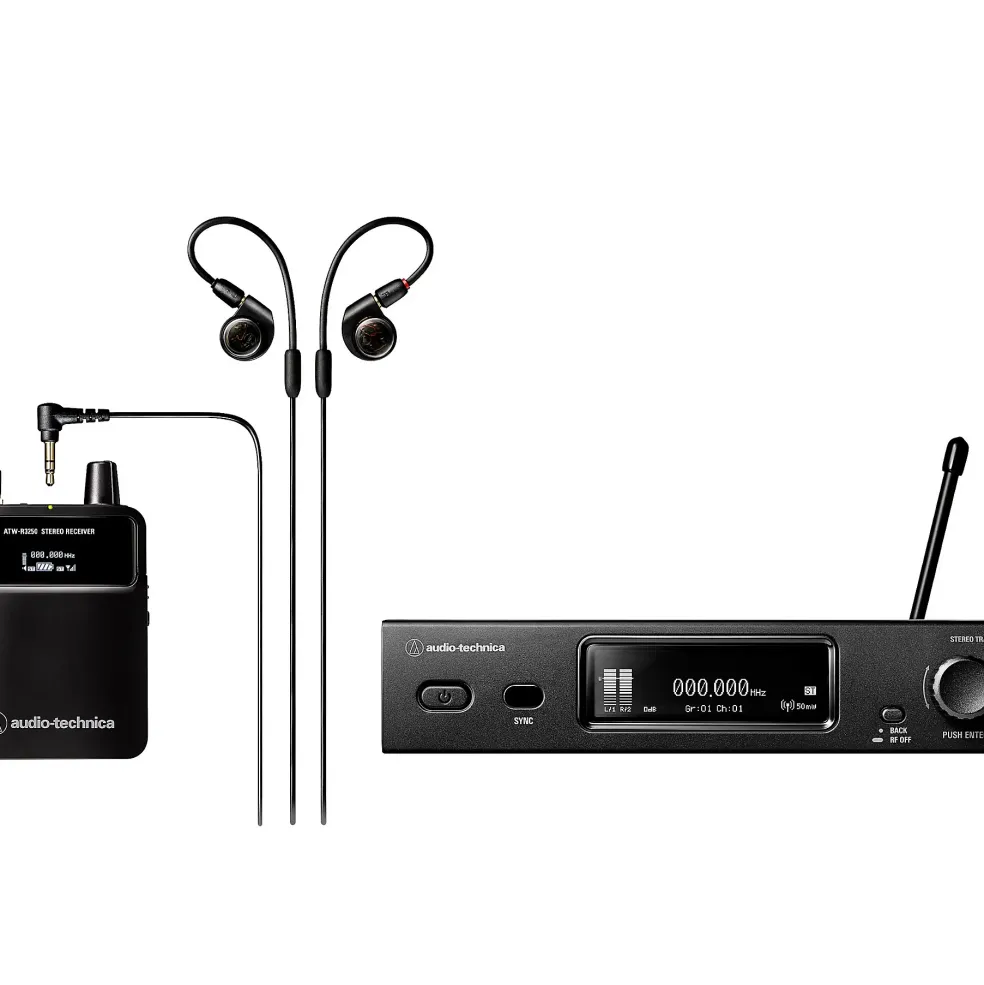

Audio-Technica ATW-3255 3000 Series Wireless In-Ear Monitor System Black

Audio-Technica ATW-3255 3000 Series Wireless In-Ear Monitor System Black

Original price was: $849.00.Current price is: $124.89.

SKU: SKU1500000376856 Categories: Mics & Wireless, Wireless Systems Tag: Audio-Technica Brand: Audio-Technica

Description
Reviews (0)

The Audio-Technica 3000 Series wireless in-ear monitor system was designed to bring professional sound quality and features to all levels of performers and performance venues. The 3000 Series wireless IEM provides an affordable, durable in-ear monitor system that is easy to use and, crucially, delivers high-quality sound with dependable RF.

With design elements modeled after the popular 3000 Series UHF wireless microphone systems, the 3000 Series IEM features a rack-mount transmitter with front-panel controls and large OLED display, body-pack receiver with an efficient headphone amp (it also conveniently charges in the same ATH-CHG3 and ATH-CHG3N charging stations as the 3000 Series UHF body-pack transmitters) and ATH-E40 professional in-ear monitor headphones with propriety dual-phase push-pull drivers. Together, these elements provide clear, natural sound quality on any stage.

The 3000 Series wireless IEM offers exceptional wide-band UHF coverage (138mHz), available in frequency band DF2 (470–608mHz), receiver antenna diversity to ensure RF stability and stereo or mono operation with pan/personal mix controls. Additional features include network monitoring and control via the Audio-Technica Wireless Manager software, a cue mode that allows an audio engineer to monitor several IEM channels from a single receiver, and a 3000 Link mode that enables compatibility with 3000 Series wireless microphone components.

Mixing and performing on a smaller scale shouldn’t have to mean sacrificing sound quality. Through the 3000 Series Wireless In-Ear monitor system, Audio-Technica continues to deliver on its promise of making high-quality audio accessible to all.

Durable wireless in-ear monitor system delivers high-quality sound and stable RF
Ideal for use in houses of worship and performance venues
Optimized internal digital signal processing provides exceptional stereo separation
Wide UHF tuning bandwidth of 138 mHz for maximum versatility in an increasingly congested RF environment; available in frequency band DF2 (470–608 mHz)
Shares design elements with the 3000 Series UHF Wireless Systems for easy integration and compatibility
Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
Offers network monitoring and control via Wireless Manager software
A channel plan can be deployed to all network-connected transmitters via an RF scan from a single receiver, with no interference or third-order intermodulation
Bodypack receiver operates continuously for up to 7 hours when powered by NiMH batteries and charged in the ATW-CHG3 or ATW-CHG3N charging station (sold separately)
Stereo or mono operation with pan/personal mix controls
Receiver is equipped with an efficient headphone amp to ensure clear, natural sound quality
Custom audio settings include EQ, limiter, gain control and balance
Receiver’s antenna diversity improves RF stability
Included ATH-E40 professional in-ear monitor headphones feature propriety dual-phase push-pull drivers for exceptional accuracy and clarity
Transmitter is equipped with balanced XLR inputs and loop output, plus network port

Overall System

Operating frequencies band DF2: 470.125 to 607.875mHz
Minimum frequency step: 25kHz
Modulation mode: FM
Nominal/peak deviation: ±34kHz nominal/±45kHz peak
Dynamic range: >90dB, A-weighted, typical
Total harmonic distortion: <0.2% (at 1kHz, +4dBu input)
Operating range: 300′ (in open range environment with no interfering signals)
Frequency response: 40Hz–14,100Hz
Stereo separation 75dB
Maximum simultaneous use (recommended): 49 channel per band

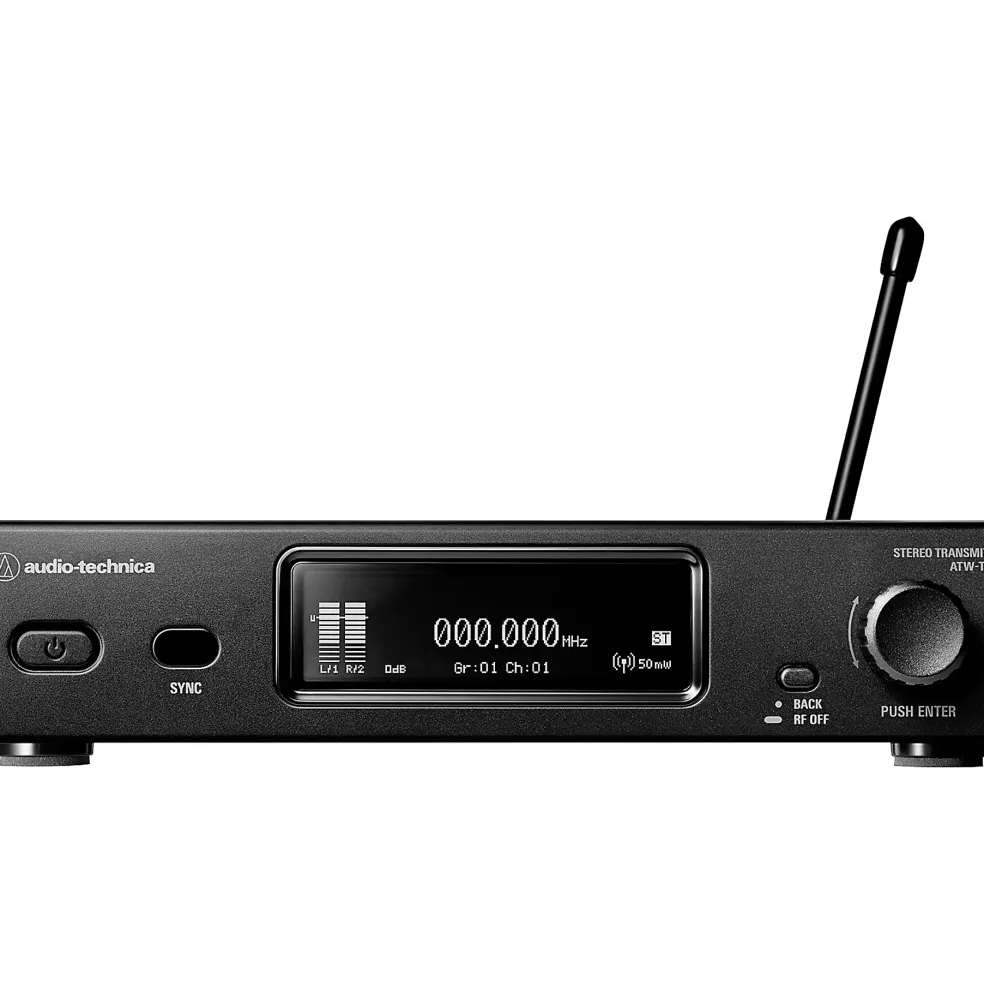

ATW-T3205

RF Output power: High of 50mW, low of 10 mW (switchable) at 50 ohms
Input connection: XLR-F type x 2 (Pin1: GND, Pin2: Hot, Pin3: Cold)
Maximum input level: XLR-F type +24 dBu (at 0dB sensitivity)
Output connection: 1/4″ TRS x 2
Network: 100BASE-T
Network port: RJ-45
Power supply: 100V to 240V AC (50/60Hz) to 12VDC 1 A (center positive) switched mode external power supply
Antenna output: BNC-type, 50 ohms
Dimensions (WxDxH): 8.3″ x 7.5″ x 1.7″
Weight (without accessories): 2.437 lb.
Included accessories: AC adapter, rackmount (large, small) and flexible UHF antenna

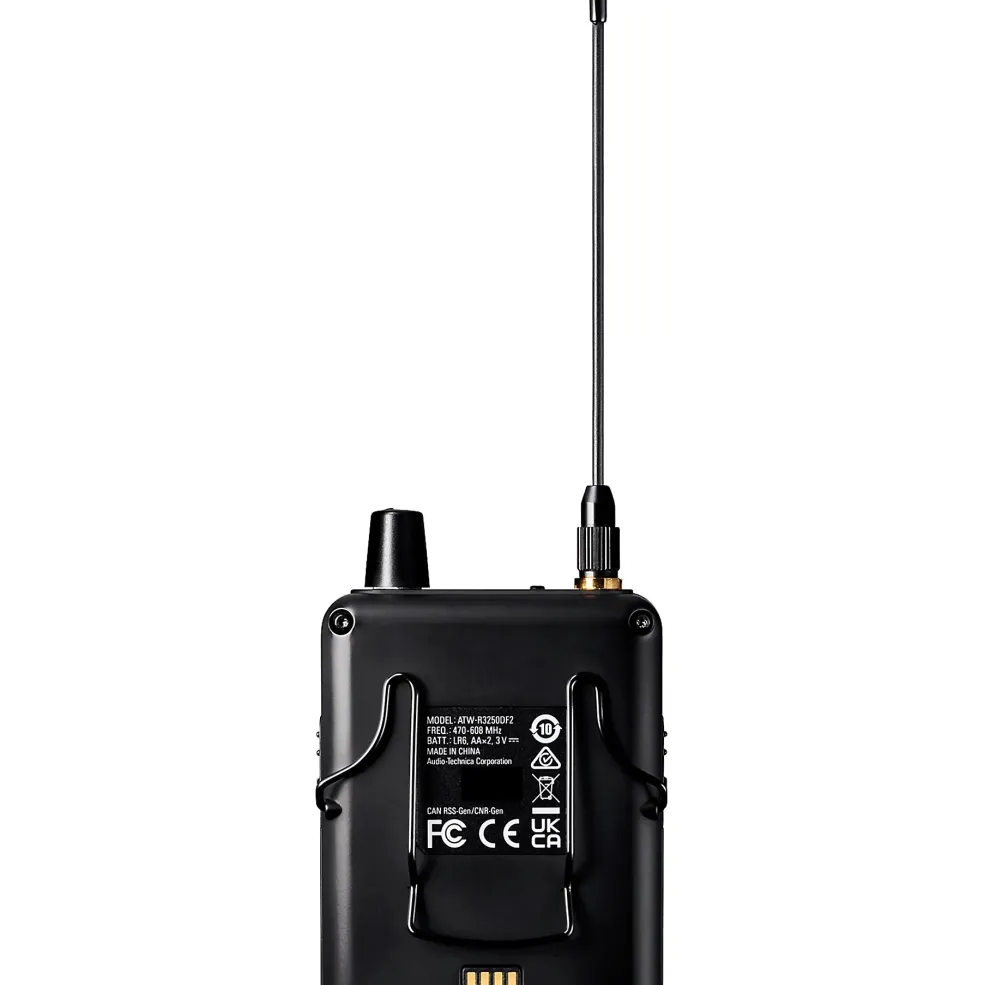

ATW-R3250

Receiving system: Antenna diversity
Image rejection: >80dB, typical
RF Sensitivity: 20 dBuV at 60 dBA S/N ratio (50 ohms termination)
Headphone output jack: 1/8″ TRS stereo mini-jack
Headphone output: 40 mW (at 12 ohms)
EQ Low: 80Hz/160Hz/320Hz/±9dB in 3dB step
EQ High: 6kHz/8kHz/10kHz/±9dB in 3dB step
Limiter: Selectable -30dB to OFF (0dB) in 6dB steps
Antenna input: SMA type, 50 ohms
Batteries: 3 VDC (two 1.5 V AA) (not included)
Operating temperature range: -5℃ to +45℃ (23℉ to 113℉)
Battery life: 4–6 hours (alkaline), 5–7 hours (Ni-MH, 1900 mAh), 11–13 hours (Lithium)
Dimensions (WxDxH): 2.5″ x 0.91″ x 3.2″
Weight (without batteries): 0.225 lb.
Included accessories: ATH-E40
