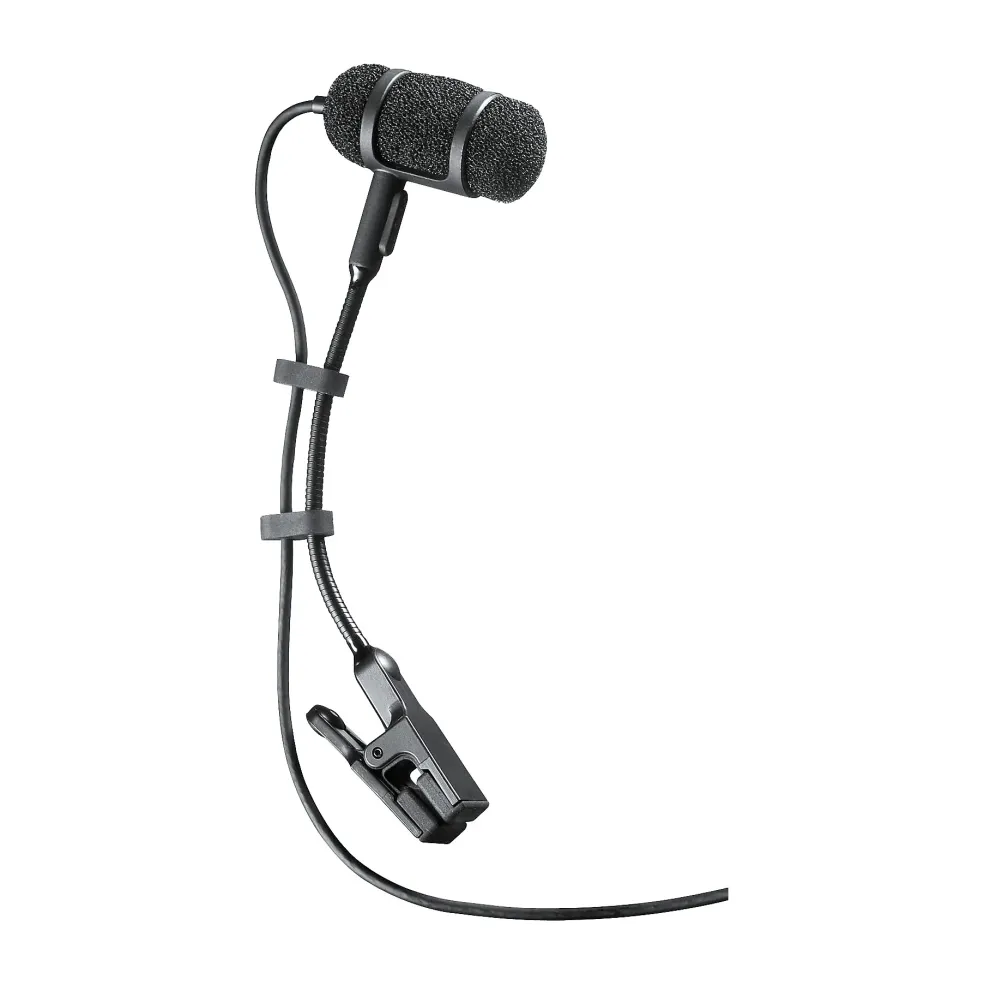

The A-T PRO 35 includes the AT8538 power module, which accepts the PRO 35’s locking cable connector and terminates to an XLR male connector for a wired connection to a mixing console etc.
(If you’re looking for a wireless solution, the A-T PRO 35cW terminates to a 4-pin connector for use with A-T UniPak bodypack wireless transmitters.)
Requires phantom power.
- Ideal for sax, toms, brass and percussion
- Excels in high-SPL applications
- Ideal for active stage performances
- UniMount clip permits accurate positioning, provides shock resistance and protects element
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Extended frequency response captures subtle nuances of the performance
- 6 ft. (1.8 m) cable permanently attached between microphone and power module
- Element: Fixed-charge back plate, permanently polarized condenser
- Polar pattern: Cardioid
- Frequency response: 50-15,000 Hz
- Low frequency roll-off: 80 Hz, 18 dB/octave
- Open circuit sensitivity: -45 dB (5.6 mV) re 1V at 1 Pa
- Impedance: 250 ohms
- Maximum input sound level: 145 dB SPL, 1 kHz at 1% T.H.D.
- Dynamic range (typical): 115 dB, 1 kHz at Max SPL
- Signal-to-noise ratio: 64 dB, 1 kHz at 1 Pa
- Phantom power requirements: 11-52V DC, 2 ma typical
- Switch: Flat, roll-off
- Weight (microphone): 0.3 oz. (8 g)
- Weight (power module): 2.9 (81 g)
- Dimensions (microphone): 0.98 in. (25 mm) long, 0.4 in. (10.2 mm) diameter
- Dimensions (power module): 3.66 in. (92.9 mm) long, 0.74 in. (18.9 mm) diameter
- Output connector (power module): Integral 3-pin XLRM-type
- Cable: 6 ft. (1.8 m) long (permanently attached to microphone), 0.10 in. (2.6 mm) diameter, 2-conductor, shielded cable with TA3F-type connector
- Accessories furnished: AT8418 UniMount microphone instrument mount; AT8538 power module; soft protective pouch
- Audio-Technica case style: M12
