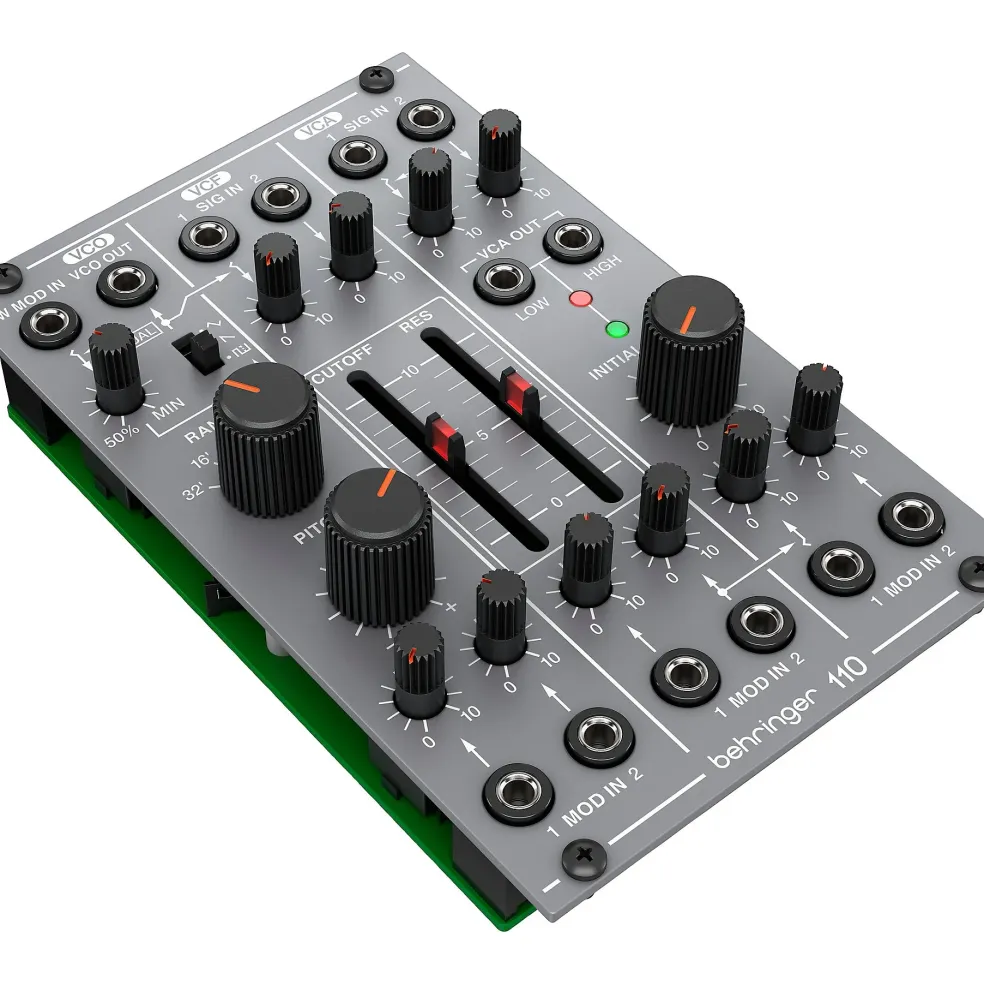

Behringer 110 VCO/VCF/VCA Eurorack Module
$33.89
Controlling the Oscillator
The 110 comes with a complete synth voice with an internally patched signal flow for ease of use. Plus, it saves patching time so you can focus on your music. You can vary the VCO section by selecting one of three waveforms: triangle, ramp and Pulse Width Modulation, which can be adjusted by the Mod Manual knob. The VCO also offers pitch and range control knobs as well as one audio output, which can be routed to another source, and two CV inputs.
VCF and VCA
The VCF features cutoff frequency and resonance sliders. The VCA comes with two audio outputs (low/high). Both the VCF and VCA feature two audio inputs and two CV inputs that allow for other sources to be plugged into the 110, making it a must-have in any modular synth.
Eurorack Ready
Installing the 110 VCO/VCF/VCA is simple. It was designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the 110 VCO/VCF/VCA to be mixed with other synth modules for a truly unique setup.
Whether you’re just getting into modular synths or looking to complete your collection, the 110 VCO/VCF/VCA module from Behringer is a great tool to have when creating amazing music.
- VCO/VCF/VCA module from the ’80s
- Authentic reproduction of original System 100M circuitry
- Complete synth voice with internal patched signal flow for ease of use
- VCO features three selectable waveforms (triangle, ramp and square with PWM)
- VCO offers pitch control over a wide range plus one audio output and two CV inputs
- VCF features cutoff, frequency and resonance controls, plus two audio inputs and two CV inputs
- Oscillator PWM with manual and external CV control
- VCA features gain control, plus two audio inputs, two audio outputs (low/high) and two CV inputs
- 17 controls and switches give you realtime access to all important parameters
- Eurorack specs: 16 HP, 60 mA +12V, 50 mA -12V
Pulse width mod
- Type: 3.5 mm TS jack, DC coupled
- Impedance: >70 kohm, unbalanced
- Maximum input level: 0V to +10V, 4% per volt
Signal input
- Impedance: >50 kohm, unbalanced
- Max input level: +17 dBu @ unity gain
VCO mod input
- Type: 2 x 3.5 mm TS jacks, summed
- Impedance: >50 kohm, unbalanced
- CV range: 0V to +10V, 1 V/oct
VCF mod input
- Type: 2 x 3.5 mm TS jacks, summed
- Impedance: >50 kohm, unbalanced
- CV range: 0V to +10V, 1 V/oct
VCA mod input
- Type: 2 x 3.5 mm TS jacks, summed
- Impedance: >50 kohm, unbalanced
- CV range: 0V to +10V, typically 1V per 10dB
Outputs
- VCO output
- Type: 3.5 mm TS jack, DC coupled
- Impedance: 1 kohm, unbalanced
- Max output level: 10V p-p
- Frequency range with no external CV: <10Hz to 500Hz
- Frequency range using external CV: <1Hz to 30kHz
VCA output
- Type: 2 x 3.5 mm TS jacks, AC coupled
- High impedance: 1 kohm, unbalanced
- Low impedance: 3 kohm, unbalanced
- High max output level: +18dBu
- Low max output level: -2dBu
- High output noise: <-60dBu, 22Hz -22kHz
- Low output noise: <-80 dBu, 22Hz -22kHz

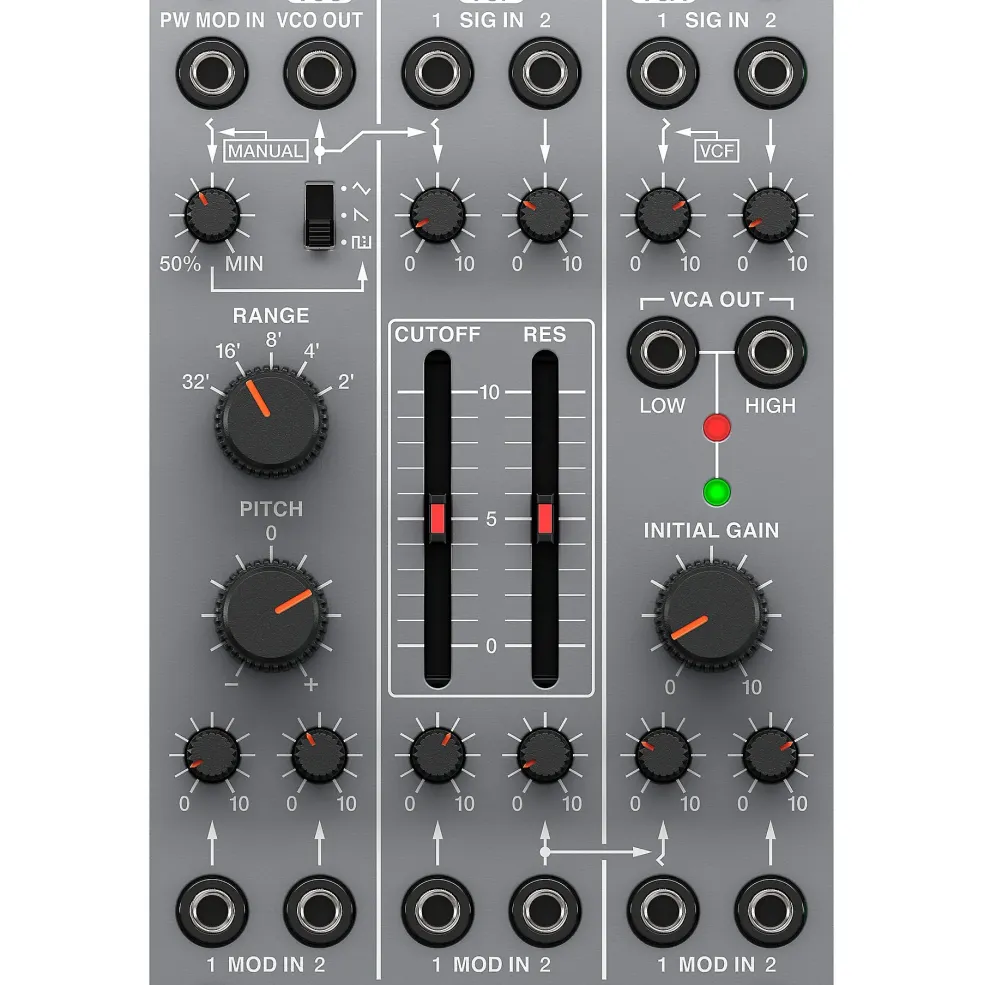

Controls
- Pulse width manual: 50% to min
- Waveform: Triangle, sawtooth, pulse
- Range: 32’, 16’, 8’, 4’, 2’
- Pitch: 2-octave range
- Cutoff frequency: 20Hz to 20kHz
- Resonance: Off to self oscillation
- Sig in level: -∞ to unity gain
- Mod in level: -∞ to unity gain
- VCA initial gain
Power
- Power supply: Eurorack
- Current draw: 80 mA (+12V), 50 mA (-12V)
Physical
- Dimensions: 3.2″ x 5.1″ x 1.8″
- Rack units: 16 HP
- Weight: 0.42 lb.
