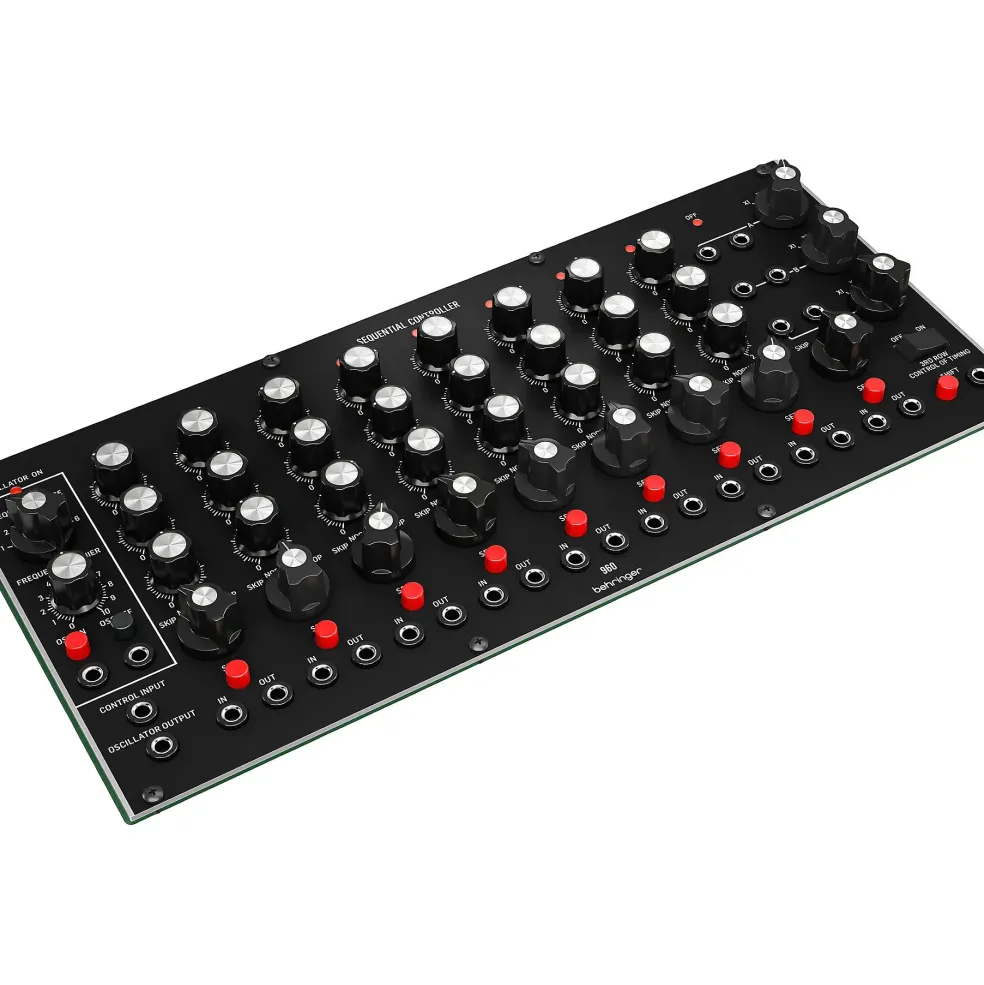

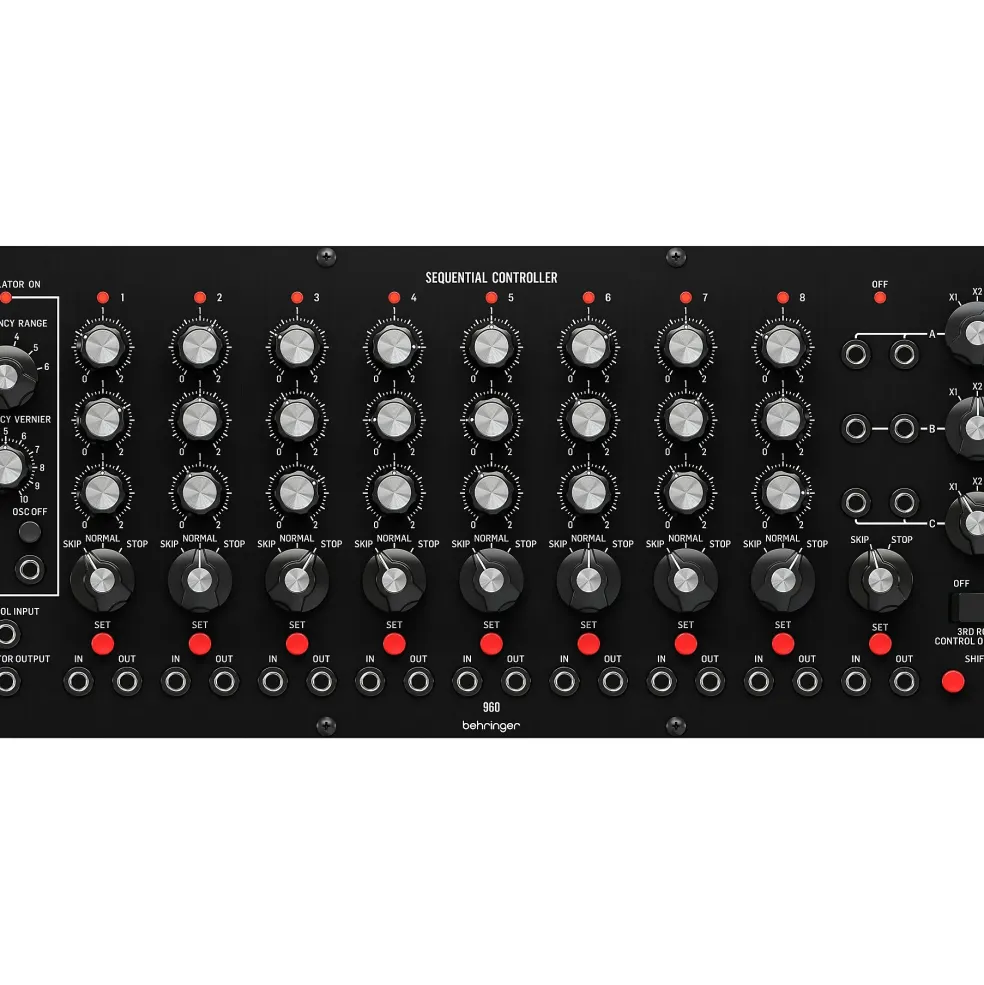

Behringer 960 Sequential Controller Eurorack Module
Original price was: $159.00.$101.89Current price is: $101.89.
The Behringer 960 sequential controller module brings true analog sequencing to your Eurorack modular synthesizer setup. With authentic circuitry modeled after classic modular sequencers of the past, the 960 Sequential Controller lets you program rhythmic patterns and melodic sequences to drive your modular synths. The Behringer 960 Sequential Controller is Eurorack-compatible, easy to integrate and opens up new dimensions of creative potential.
Shape Rhythms and Melodies With 8 Flexible Steps
At the heart of the 960 sequential controller is an 8-step analog sequencer for programming rhythmic and melodic patterns. Each step has individual pitch control knobs, letting you set the voltage output per step to create melodies and basslines. Switch each step between Normal, Skip and Stop modes to alter the sequence playback and create rhythmic variations. The manual Set buttons allow realtime triggering of each step. Connect it to a VCO or other sound source and start laying down sequences.
Expand to 24 Steps With the 962 Sequential Switch
Add the Behringer 962 sequential switch module and unlock a 24-step sequencer for longer, more intricate patterns. The 962 switches between three rows of the 960’s step knobs, multiplying the number of steps. Create complex rhythms, arpeggios and basslines by combining the 960 and 962 modules. The expandable architecture takes your sequences to the next level.
Onboard Oscillator Adds Flexible Sonic Possibilities
In addition to the step sequencer, the 960 Sequential Controller has its own onboard analog oscillator. Use the frequency knobs to dial in the pitch or patch in CV sources to modulate the oscillator. Manually start and stop the oscillator or use external gates to trigger it. With both sequencing and sound generation in one module, it unlocks new dimensions of modular creativity.
Eurorack-Ready for Quick Installation
Designed for Eurorack modular synthesizer systems, the 960 Sequential Controller seamlessly integrates into your setup. Just connect the included power cable to your Eurorack power supply, mount it with the included screws and start creating. Add vintage-inspired sequencing to your modular rig with the Behringer 960.
- Authentic reproduction of the discrete circuitry from the “Modular 55” Series
- Artist roster includes world’s most famous pop, rock and jazz musicians
- 8 steps with 3 rows of CV controls and 9th step Stop command
- Provides up to 24-step sequences when used with the 962 SEQUENTIAL SWITCH module
- Separate CV range switches per row
- Row 3 CV controls provide step length adjustment
- Function switches per step for Skip, Normal (play), Stop
- Pulse oscillator with manual and CV control of frequency, Play and Stop
- 9 buttons for manual triggering of each step
- 2 CV outputs per row with separate gate in and out per step
- Eurorack specs: 56 HP, 100 mA +12 V, 50 mA -12 V
- Type: 2 x 3.5 mm TS jacks, AC coupled
- Impedance: >3 kΩ, unbalanced
- Maximum input level: +5 V
Control input
- Type: 3.5 mm TS jack, 1 V/oct
- Impedance: 100 kΩ, unbalanced
- Maximum input level: ±2 V, vernier set to 5
Shift input
- Type: 3.5 mm TS jack, DC coupled
- Impedance: 7 kΩ, unbalanced
- Maximum input level: ±5 V
- Minimum switching threshold: +1.5 V
Stage triggers
- Type: 8 x 3.5 mm TS jacks, AC coupled
- Impedance: >3 kΩ, unbalanced
- Maximum input level: +5 V
- Minimum switching threshold: +3.5 V trigger
OutputsRow outputs
- Type: 6 x 3.5 mm TS jacks, DC coupled
- Impedance: 500 Ω, unbalanced
- Maximum output level: +8 V (range X4)
Stage trigger outputs
- Type: 8 x 3.5 mm TS jacks, DC coupled
- Impedance: 250 Ω, unbalanced
- Maximum output level: +5 V, active high
Oscillator output
- Type: 3.5 mm TS jack, DC coupled
- Impedance: 4 kΩ, unbalanced
- Maximum output level: +4 dBu
- Duty cycle: 90%
Controls
- Frequency range: 1 (0.04 to 0.5 Hz), 2 (2.75 to 30 Hz); 3 (0.17 to 2 Hz), 4 (11 to 130 Hz); 5 (0.7 to 8 Hz), 6 (44 to 500 Hz)
- Frequency Vernier: Tune the oscillator range, 3 octave range
- Oscillator on/off: Manually start or stop the oscillator
- Voltage knobs: -∞ to max voltage set by the range switch
- Mode switch: Skip stage, play stage, stop sequencer
- Set: Manually select stage
- Range switches: X1 (+2 V), X2 (+4 V), X4 (+8 V) max. output
- Timing on/off: Allows 3rd row knobs to control stage duration
- Shift button: Manually skip to next stage
Power
- Power supply: Eurorack
- Current draw: 100 mA (+12 V), 50 mA (-12 V)
Physical
- Dimensions: 11.2″ x 5.1″ x 1.9″
- Rack units: 56 HP
- Weight: 1.41 lbs
