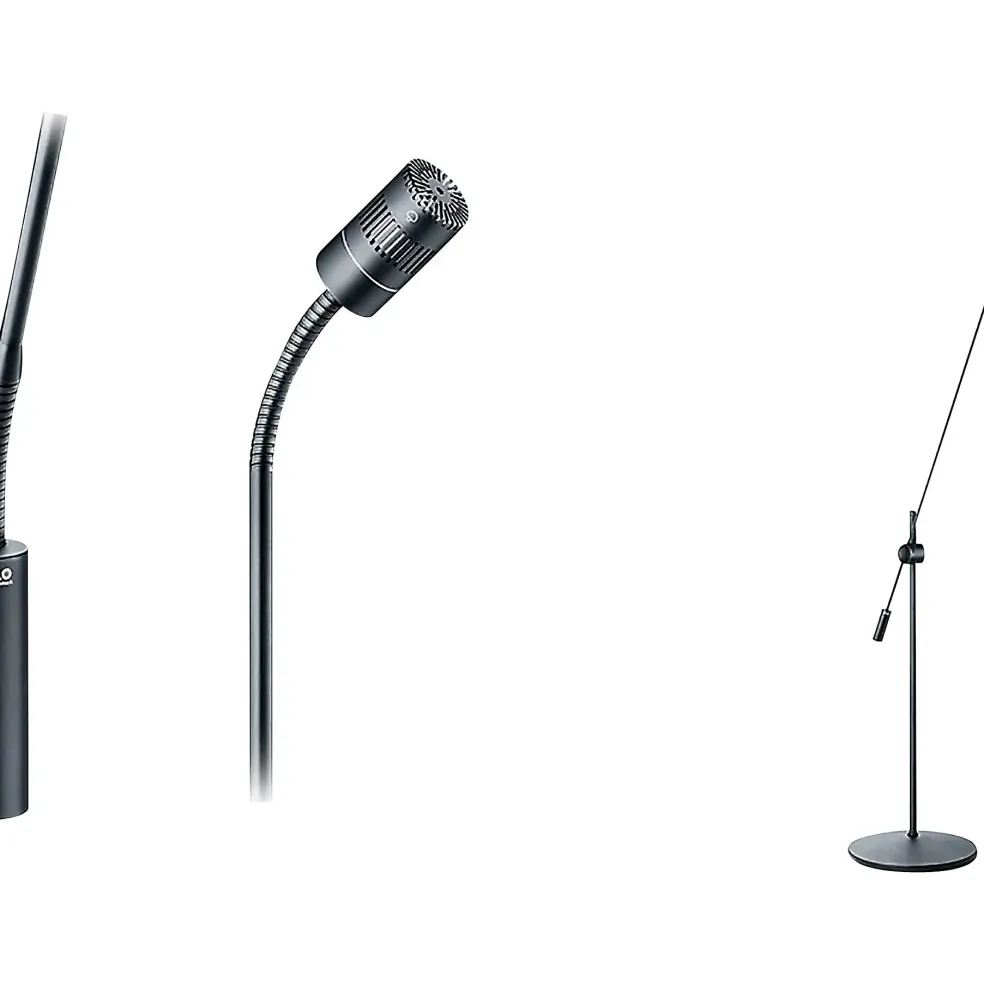

DPA Microphones 4018 Supercardioid Mic, Black, XLR, 77 cm (30 in) Boom, Floor Stand, Single Mic

Original price was: $2,565.00.Current price is: $126.89.

SKU: SKU1500000408394 Categories: Condenser Microphones, Mics & Wireless Tag: DPA Microphones Brand: DPA Microphones

Description
Reviews (0)

The DPA Microphones 4018 Supercardioid Mic solution uses the MMC4018 Cardioid Microphone Capsule, which has a highly-directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response. The supercardioid shape is frequency independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on this capsule. This makes it much more isolated without sudden frequency dependent peaks and dips.

Low noise and natural voice
Highly directional for high isolation
Uniform, frequency independent directionality
Exclusive, elegant design
Integrated shock-mounting in floor base
Rapidly stabilizing microphone boom pole
Modular flexibility

Directional pattern: Supercardioid
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency response: 20 Hz – 20 kHz
Effective frequency range, ±2 dB, at 30 cm (11.8 in): 40 Hz – 18 kHz
Sensitivity, nominal, ±2 dB at 1 kHz: 12 mV/Pa; -38.4 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 16 dB(A) re. 20 µPa (max. 19 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 23 dB (max. 26 dB)
Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
Dynamic range: Typ. 121 dB
Max. SPL, THD 10%: 142 dB SPL peak
Rated output impedance: 100 Ω
Minimum load impedance: 2 kΩ
Cable drive capability: 328 ft
Output balance principle: Impedance balancing
Common mode rejection ratio (CMRR): > 40 dB
Power supply (for full performance): P48 (Phantom Power)
Current consumption: 3.5 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase
Color: Matte black
Microphone diameter: 0.75”
Capsule diameter: 0.75”
Microphone length: Capsule: 23 mm (0.9 in), Boom pole: 30”
Maximum output voltage, RMS: 2.2 V
Polarity: +V at pin 2 for positive sound pressure
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
Matching tolerance (frequency response and sensitivity): ±1 dB
Phase deviation for kit: < 10°
