The PXM-12MP is a dedicated portable loudspeaker system designed to provide musicians, DJs and audio engineers convenient, powerful monitoring and playback functionality. By providing a symmetrical 90°x90° coverage pattern facilitated by a 12″/1.75″ coaxial driver, users can experience solid, consistent coverage, which ensures that their mix can be heard clearly without constraining them to a tiny part of the stage. The 55° monitoring angle enables users to stand as close or as far away from the system as necessary without sacrificing audio intelligibility. An integrated pole mount at the front allows for additional applications such fills, delays or a main PA. With a dedicated subwoofer and the adjustable subwoofer-matching LPFs of the PXM-12MP, a full three-way system can be configured to create an extremely compact main PA.
The integrated mixing section provides 3 input channels: 2x XLR/1/4″ combination connectors and a stereo RCA input. The DSP offers 4 EQ presets, high and low shelving, parametric midrange EQs, adjustable low-cut filters, a tunable feedback notch filter and recallable user settings. The Class-D 700W amplifier provides enough power to satisfy the most demanding monitoring requirements, and system protection and limitation designed by Electro-Voice ensures that the PXM-12MP will play loudly and consistently even at the edge of its specifications.
Why has the PXM-12MP become a go-to for guitarists? If you use an amp modeler to create your signature sound, then the PXM-12MP offers FRFR (Full Range/Flat Response) to accurately reproduce your carefully crafted sound. In addition, the PXM-12MP also includes a Guitar Cab mode among its presets, allowing users to connect a guitar directly to the speaker via a D.I. box.
- Class-D power with 700W peak output
- Coaxial design with 12″ and 1.75″ 2-way drivers
- 64Hz–20kHz frequency response
- 129dB maximum SPL
- Active/passive: Active
- Type: 2-way coaxial
- LF driver: 12″
- HF driver: 1.75″
Power
- Amplifier class: D
- Wattage: 700W
- Mixer/preamp: Yes
Audio
- Frequency response: 64Hz–20kHz
- Coverage pattern: 120° x 40°
- Max SPL: 123dB

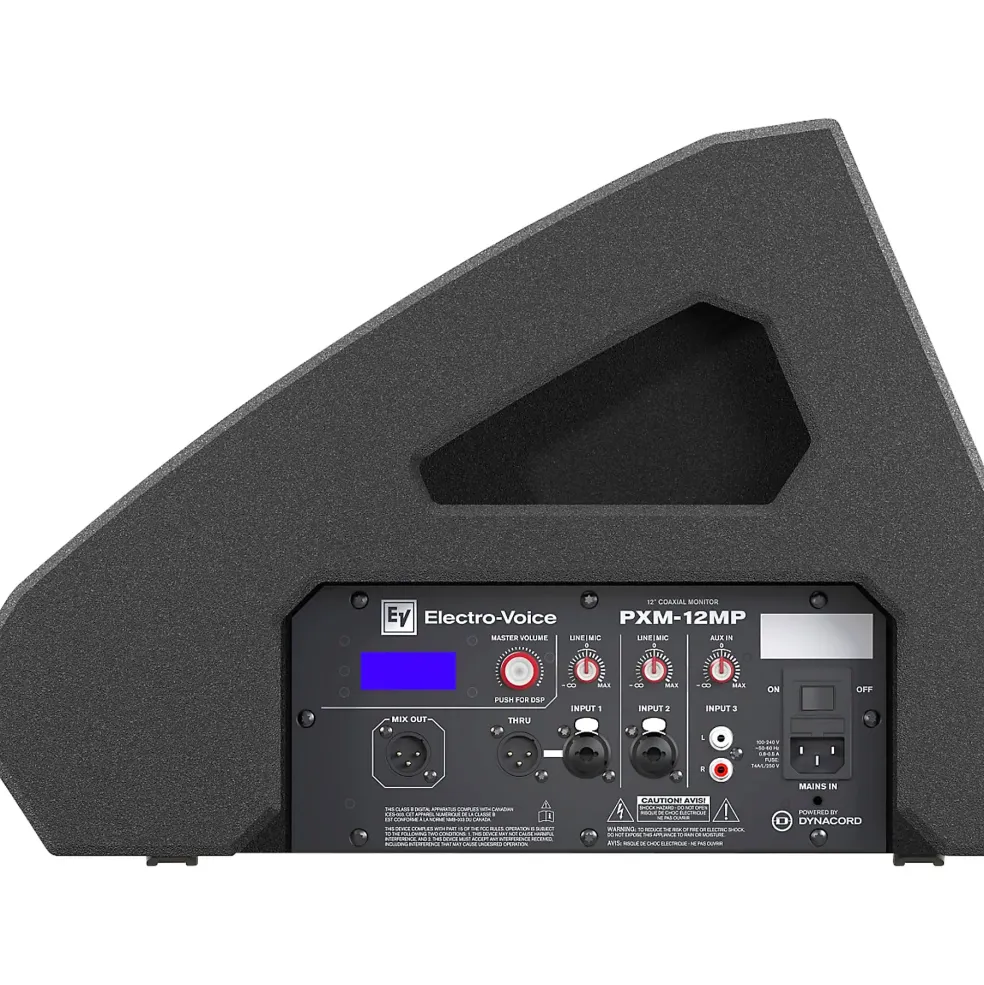

Inputs
- XLR: 2 XLR/TRS combo; 1 THRU
- TRS:
- TS:
- RCA:1 stereo
Outputs
- XLR:1
Enclosure
- Cabinet material: Molded; 15 mm plywood
- Width: 16.1″
- Height: 13.1″
- Depth: 19″
- Weight: 29.8 lb.
