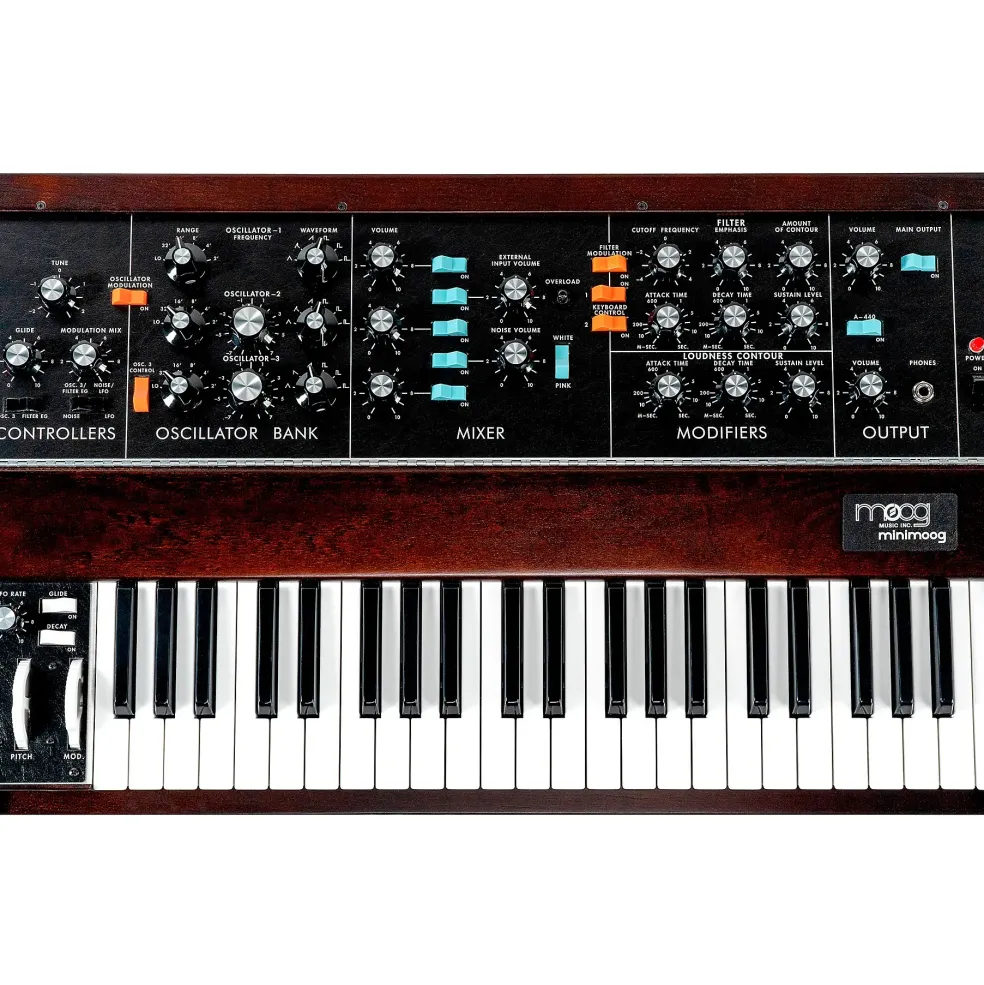

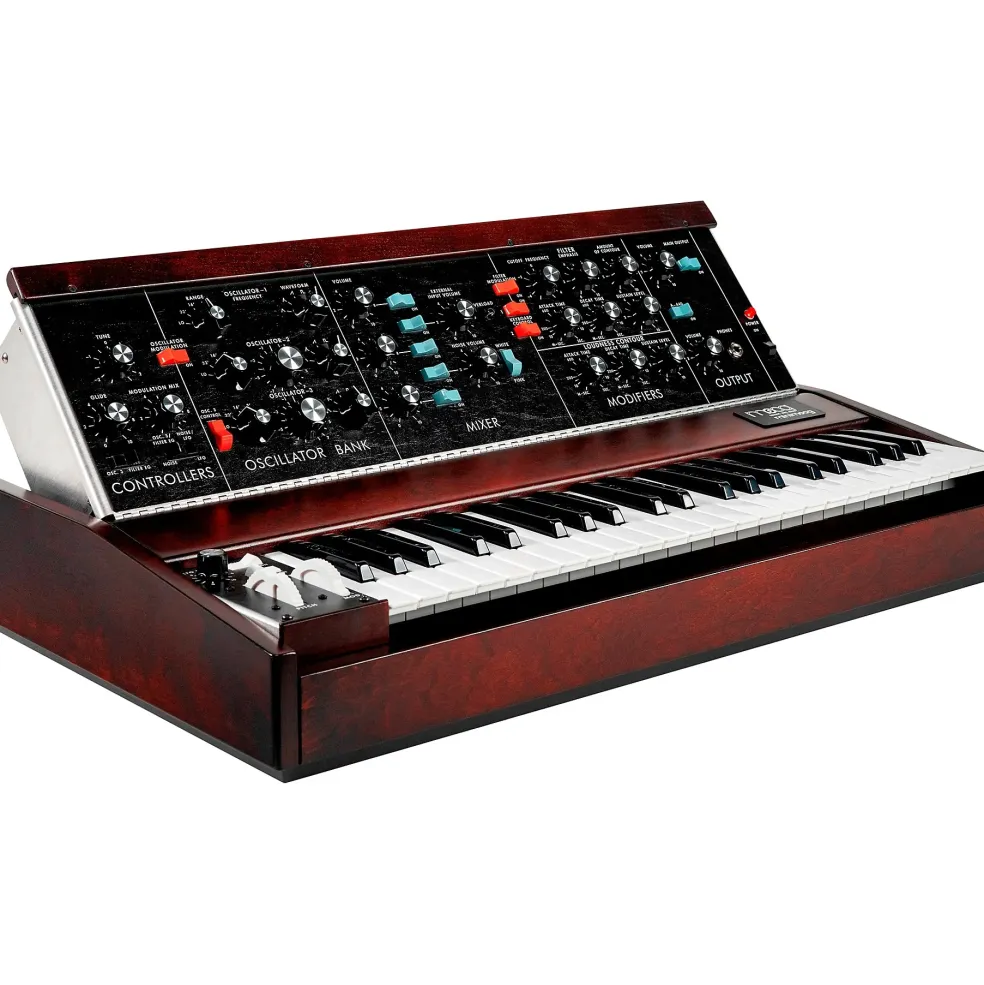

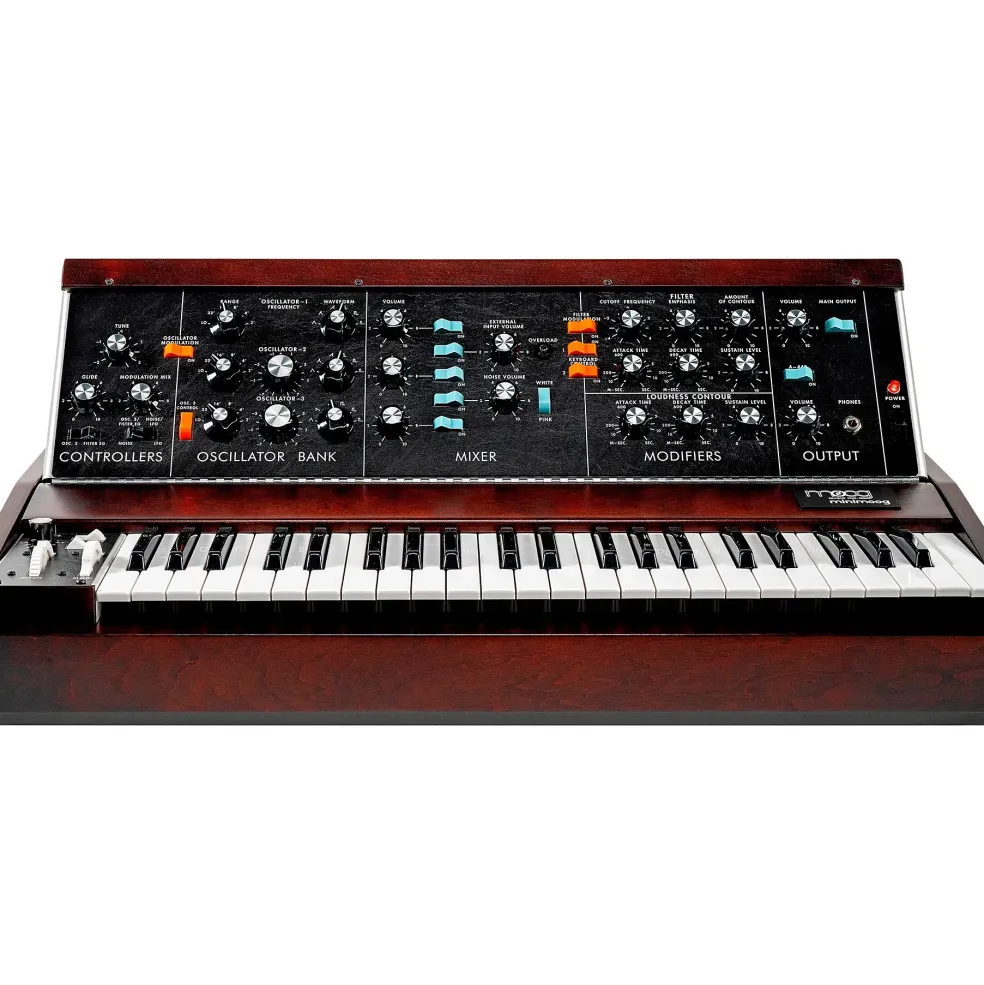

Moog Minimoog Model D Monophonic Analog Synthesizer Dark Cherry

• Number of keys: 44
• Keyboard range: F0 to C4
• Keyboard action: Synthesizer (spring)
• Note priority: Low, high, last; user selectable

Oscillator

• Sound sources: 3 oscillators, noise generator and external audio input
• Oscillator frequency range: 0.1 to 20kHz (in six overlapping ranges)
• Oscillator stability (short term): > 0.25 %
• Oscillator waveforms: Triangle, Triangle-Sawtooth (Oscillator–1, Oscillator–2), Reverse Sawtooth (Oscillator–3), Sawtooth, Rectangle, Wide Pulse and Narrow Pulse
• Noise generator: White and pink
• LFO rate: 0.05Hz to 200Hz
• LFO waveform: Triangle (knob down); Square (knob up)

External Modulation Input

• Range: +10 millivolts to +2 volts
• Impedance: 1 megaohm

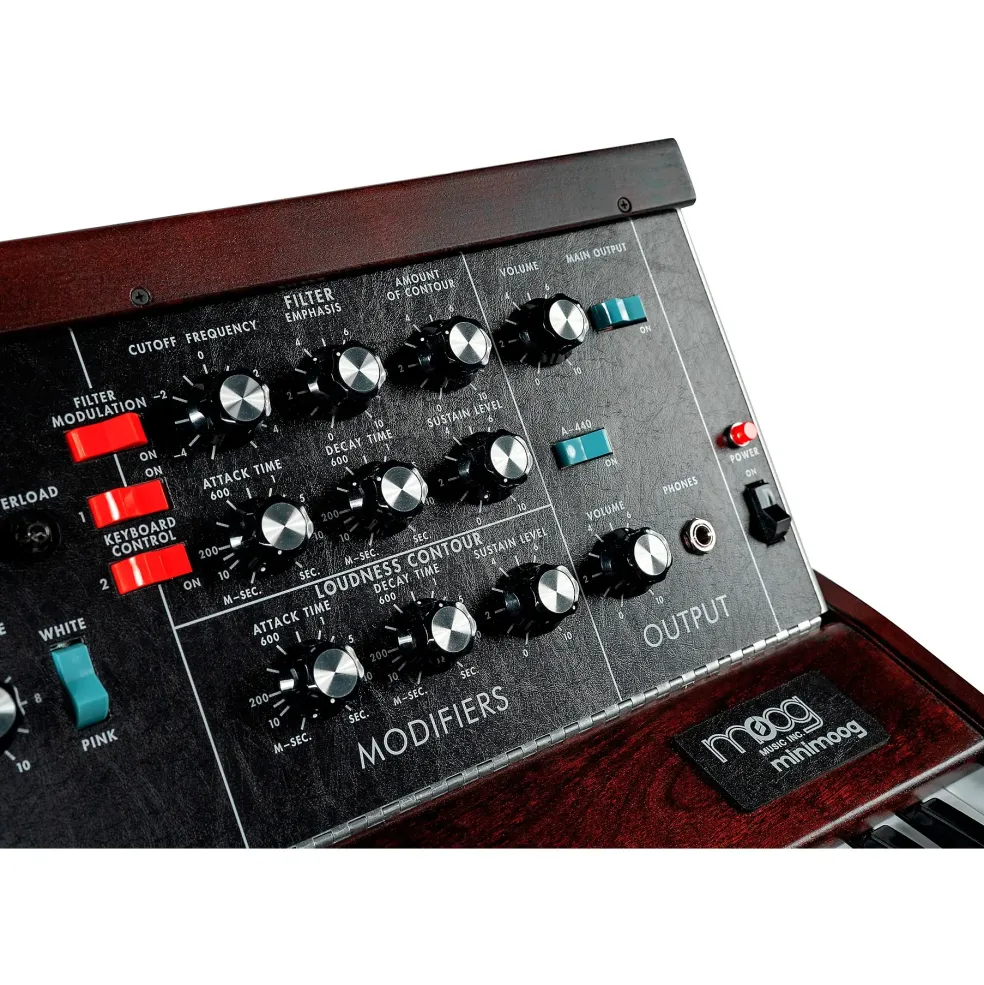

Filter

• Type: Voltage-controlled low pass (Ladder Filter)
• Frequency range: 10Hz to 20kHz
• Slope: 24dB per octave
• Keyboard tracking: 1/3, 2/3, 1:1

Contour

• Attack time: 1 millisecond to 10 seconds
• Decay time: 4 milliseconds to > 35 seconds
• Sustain level: 0 to 100% of contour peak
• Filter contour width: 0 to 4 octaves

External Audio Input

• Voltage: +10 millivolts (min); +10 volt (max.)
• Nominal impedance: 1,000 kohms

Voltage-Controlled Amplifier

• Loudness contour dynamic range: 80dB

High Audio Output

• Typical voltage: 0.5 volts/maximum voltage: 4.2 volts (peak to peak)
• Nominal impedance: 3 kohms

Low Audio Output (30dB Below High Level)

• Typical voltage: 15 millivolts
• Nominal impedance: 1 kohms

Headphone Output

• Voltage: Maximum 0.3 volts
• Impedance: 8 ohms

Other

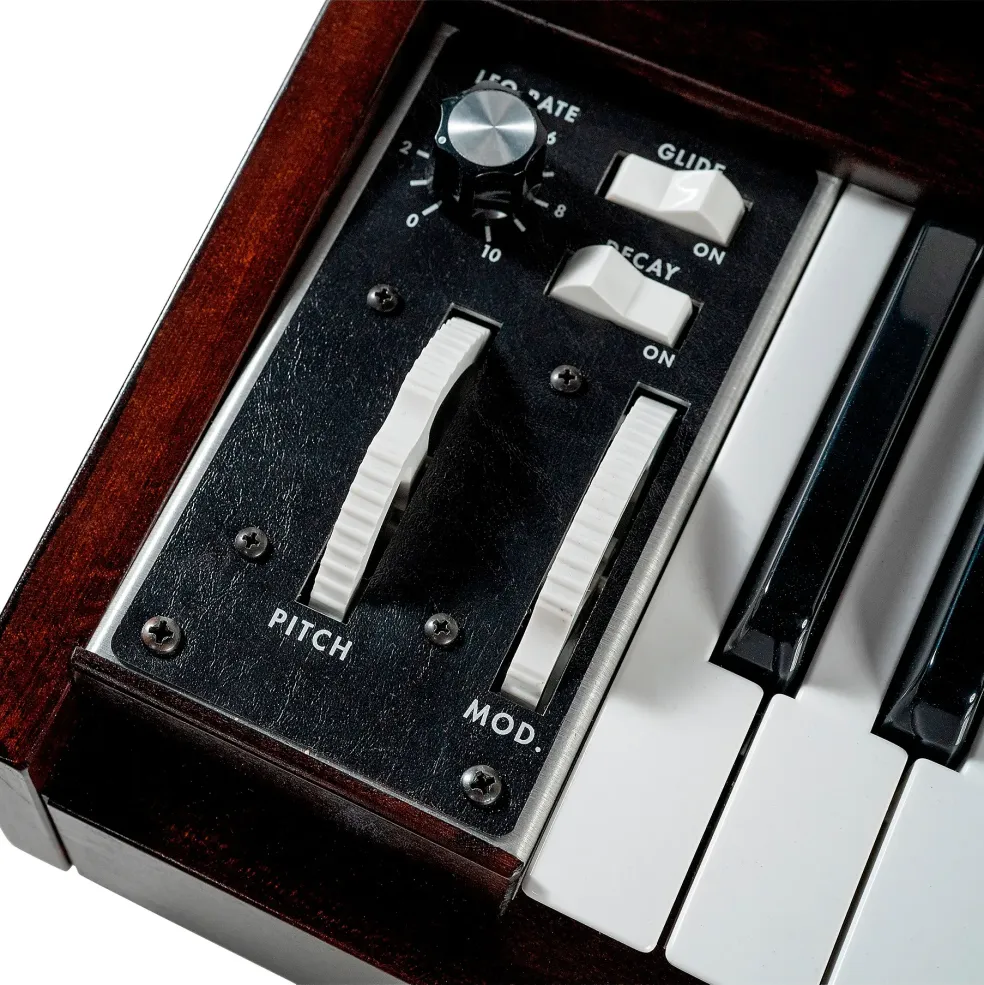

• Glide rate: 1 millisecond to 10 seconds
• Pitch bend rate: (+/–) 7 semitones (minimum)

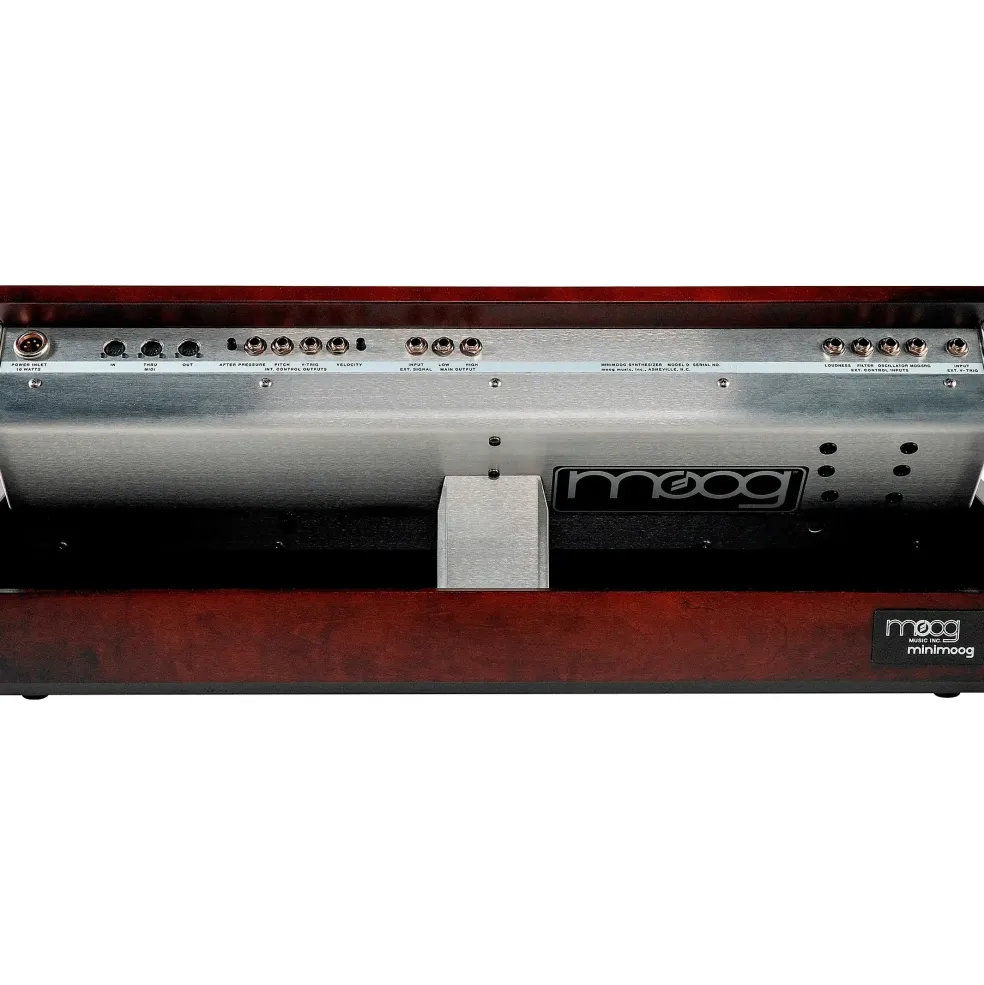

• After pressure CV output (1/4″ TS): 0 to +5 volts with user adjustable trimpot
• Pitch CV output (1/4 ” TS): –3 volts to +7 volts (C=0 volts)
• Gate output (1/4″ TS): 0 to +5 volts
• Velocity Output (1/4″ TS): Selectable 0 to +5 volts or 0 to +10 volts with user adjustable trimpot.

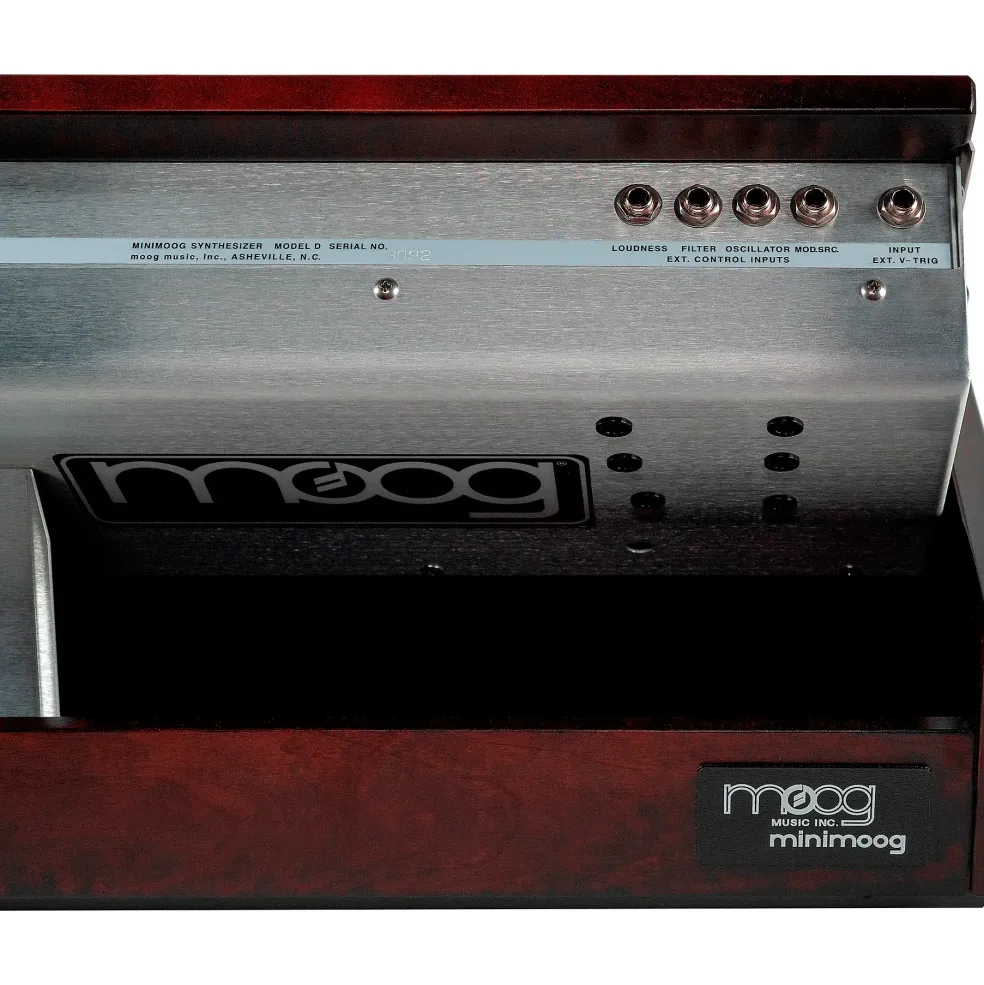

• LOUDNESS INPUT (1/4″ TS): 0 to +5 volts; +5 volts = Unity Gain (Works with Moog EP-3 Expression Pedal)
• Filter cutoff input (1/4″ TS): 1 volt per octave of change (works with Moog EP-3 Expression Pedal)
• Oscillator pitch input (1/4″ TRS): 1 volt per octave of change (works with Moog EP-3 Expression Pedal)
• Modulation source input (1/4″ TRS): Ring = noise send; tip = modulation receive (this jack makes a normalled connection with no cable present)
• Trigger input (1/4″ TS): +5-volt V-Trigger activates both contour generators
• MIDI input (5-pin DIN): Note On & Note #
• MIDI output (5-pin DIN): Note on, note #; velocity; aftertouch, mod wheel, pitch bend
• MIDI thru (5-pin DIN): Mirror of the MIDI In signal
• External power supply: Self-switching; 100–240 volts; 50/60Hz; < 12-watt nominal consumption (locking XLR-4 connector)

Dimensions and Weight

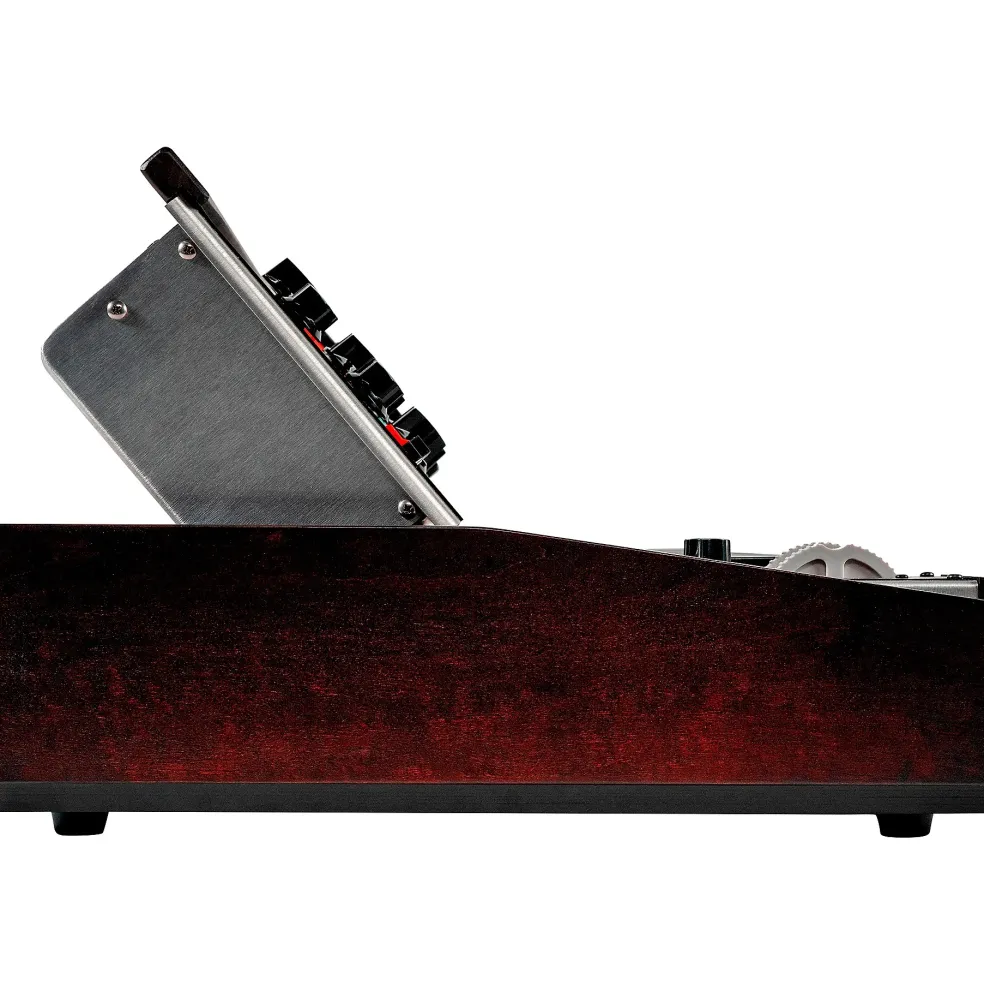

• Dimensions, with panel lowered (WxDxH): 28.625″ x 17.125″ x 5.75″
• Weight: 32 lb.
