- Each card slot is designed to fit a standard 500 series module
- Three link jumpers, which can be individually set to allow VCA linking on Channels 1-2, 3-4, 5-6, 7-8 and 9-10
- Robust +48V phantom power supply

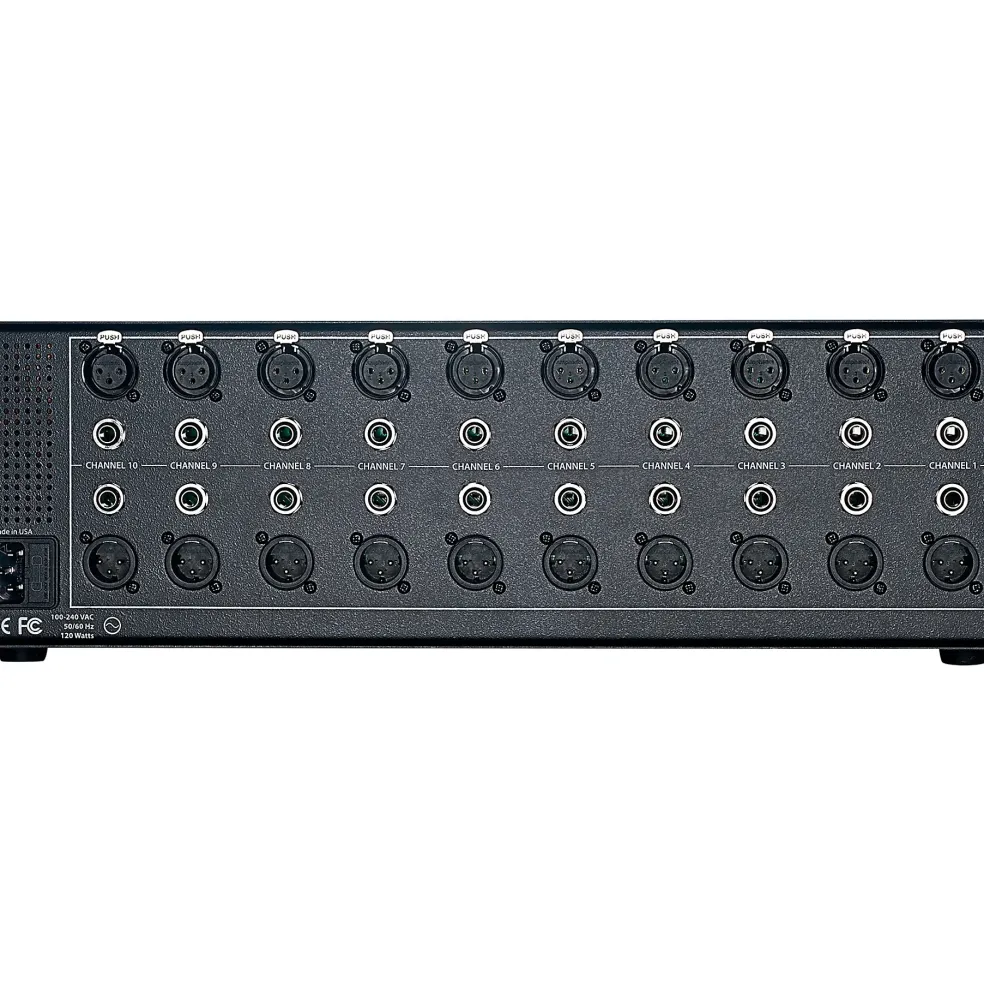

- Each channel features a balanced XLR and TRS input, which are wired in parallel
- Each channel features a balanced XLR & TRS output
- The IEC power input accepts 100-240VAC, 50/60Hz input
- Solid steel enclosure with ultra-strong rack ears gives you the confidence to take your 500 Series gear on the road
- DC voltage to units: +/-16VDC and +48VDC for phantom power
- Power requirements:Â 100-240VAC, 50/60Hz, 50 Watts
- Weight:Â 14 lb.
- Dimensions:Â 19″ L x 7.5″ D x 5.25″ H
