The WA-84 capsules are carefully manufactured by an Australian capsule supplier and are precisely reproduced to vintage specifications. Warm Audio is pleased to offer such high-quality capsules in this microphone package allowing them to nail the sonics of the most important component to any microphone’s sound.
- Small-diaphragm condenser microphoneÂ
- Directional Pattern: Cardioid and OmniÂ
- Utilizes a CineMag USA TransformerÂ
- Fully discrete, Class A design, utilizing a CineMag USA transformer, Polystyrene and Wima capacitors and a Fairchild FETÂ
- Vintage capsule reproductionÂ
- 48V phantom poweredÂ
- Frequency range: 20Hz–20kHzÂ
- Sensitivity: -39dB or 11 mV /Pa @ 1kHzÂ
- Output Impedance: 200 ohms
- Rated Load Impedance: 1 ohm
- Pad: 0db or -10dBÂ
- Maximum SPL: 123/133dB@ 1kHz, 0.5% THD, 0/-1 0dB
- S/N Ratio: 78dBA (IEC651)
- Equivalent Noise: 16dBA (IEC651)
- Dynamic Range: 107dBA (IEC651)
- Connector: 3-pin gold-plated XLRÂ

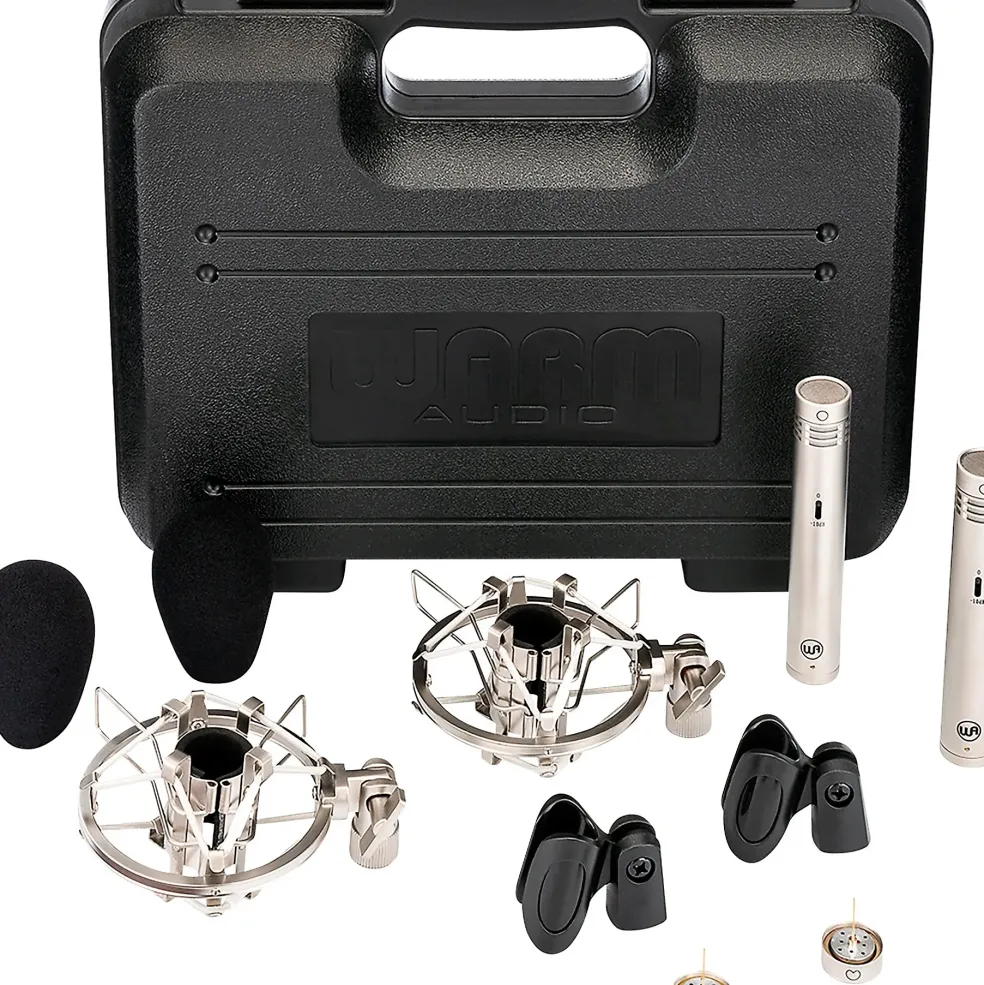

- Package Includes: 2 x microphones, 2 x cardioid capsules, 2 x omni capsules, 2 x shockmounts, 2 x mic clips, 2 x windscreens, 1 x carrying case  Â
- Weight: 122 g
- Diameter: 22 mm
- Length: 132 mm
