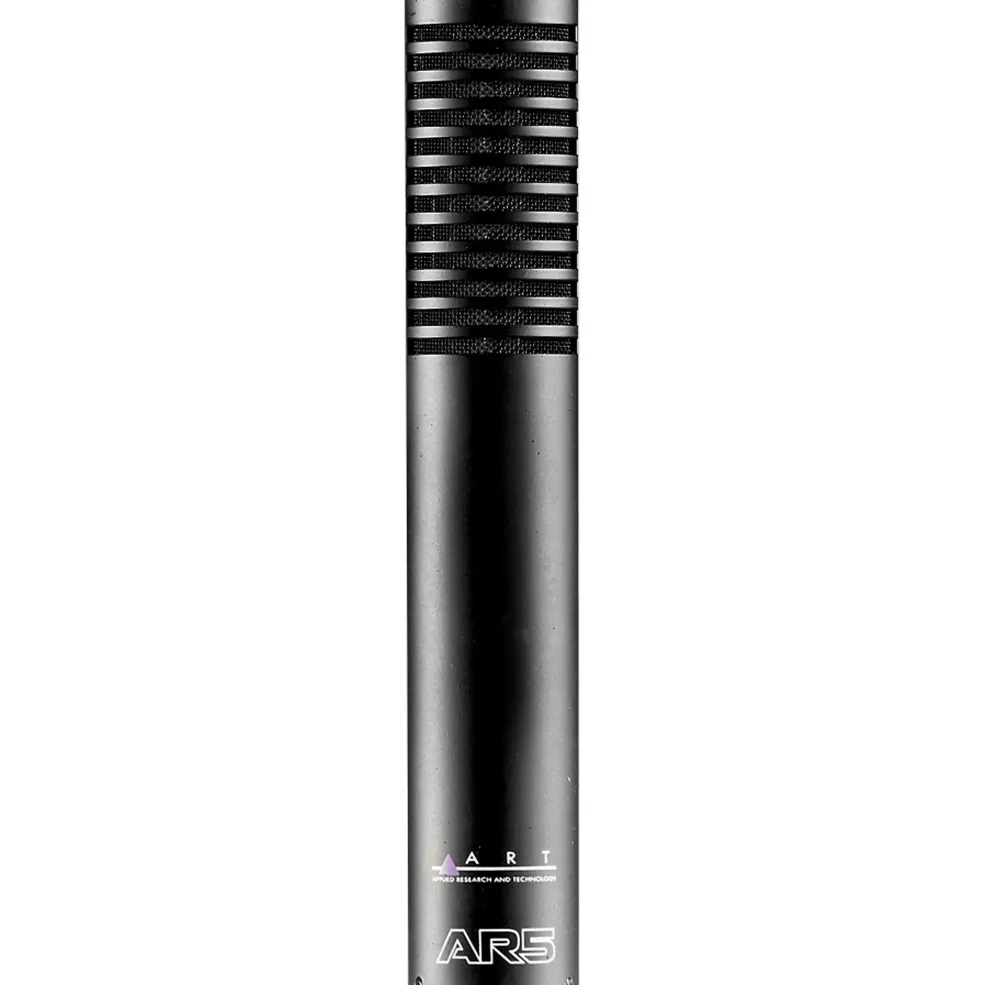

The AR5’s rugged, low profile design makes it the ideal choice for any application where the tone of a classic ribbon microphone is preferred, but the reliability, output and performance of a condenser microphone is required.
Although ribbon microphones are by their nature extremely fragile, the ART AR5 can handle high sound pressure levels approaching 150dB range. The low-tension, 2-micron aluminum ribbon design offers audio reproduction with smooth, natural extended low and high frequency response.
The asymmetrical figure-8 pickup pattern has an extended sweet spot on the rear face of the microphone allowing the recording to accurately reproduce the natural space and ambient reverberation of a good sounding live room.
The microphone’s chassis is precision-tooled brass with a dent resistant stainless-steel wire-mesh windscreen. The included shock-mount virtually eliminates vibration and handling noise, while at the same time safely securing the microphone in any position needed during the recording process.
Please Note: the ART AR5 should always be stored upright in the carrying case when the microphone is not in use.
- Dual ribbon construction for added sensitivity
- Integrated active electronics for improved stability
- and increased output
- Compact design
- Removable shockmount
- DualRibbon
Polar Pattern
- Figure-8
Frequency Response
- 20Hz to 18kHz
MAX SPL
- 150dB (1kHz @ 1%THD
S/N Ratio
- 69dB (1kHz@1kPa)
Open Circuit Sensitivity
- -42dB (7.9mV) 1v@1Pa
Noise
- 25dB SPL
Impedance
- <100 ohms
Recommended Load Impedance
- 1000 ohms
Power Requirement
- 48v Phantom Power 3.0mA Typical
Dimensions
- 28mm x 174.5mm
- 1.1 inches x 6.9 inches
