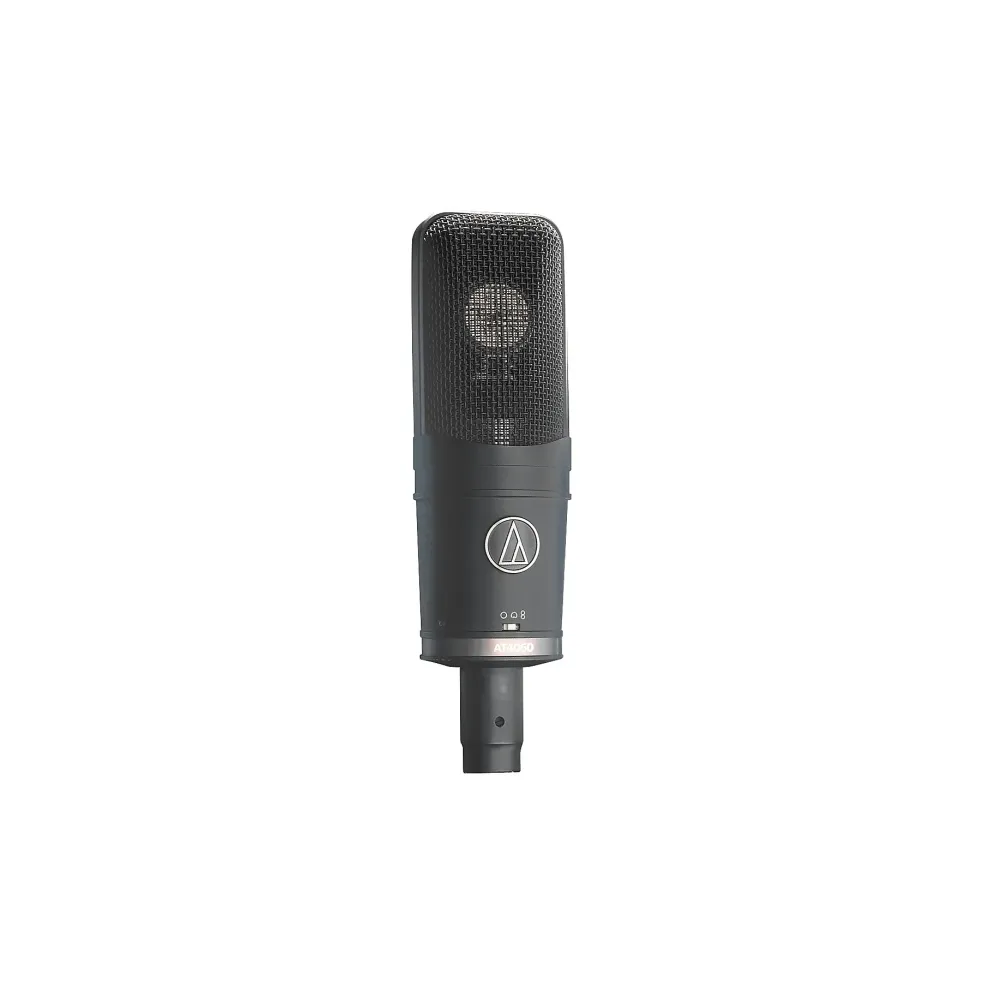

The AT4050 is an ideal microphone for studio use and live sound productions with vocals, piano, strings, drum overheads, guitar amps, and more.
¢Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities and highest quality

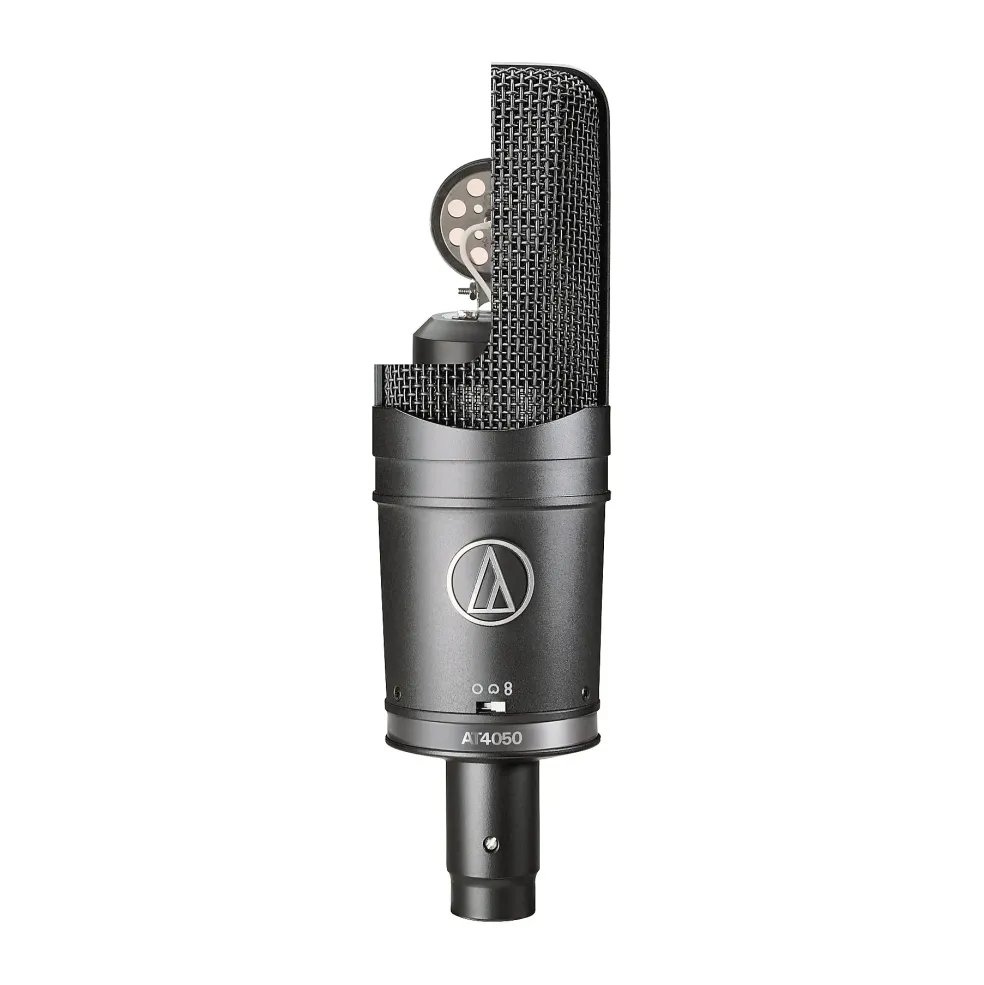

¢Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
¢The 2-micron-thick, vapor-deposited gold diaphragms undergo a 5-step aging process so that the optimum characteristics achieved remain constant over years of use
¢Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
¢Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
¢State-of-the-art surface-mount electronics ensure compliance with A-T’s stringent consistency and reliability standards
Requires phantom power.
- Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities and highest quality
- Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
- The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use
- Three switchable polar patterns: omni, cardioid, figure-of-eight
- Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
- State-of-the-art surface-mount electronics ensure compliance with A-T’s stringent consistency and reliability standards
- Switchable 80 Hz hi-pass filter and 10 dB pad

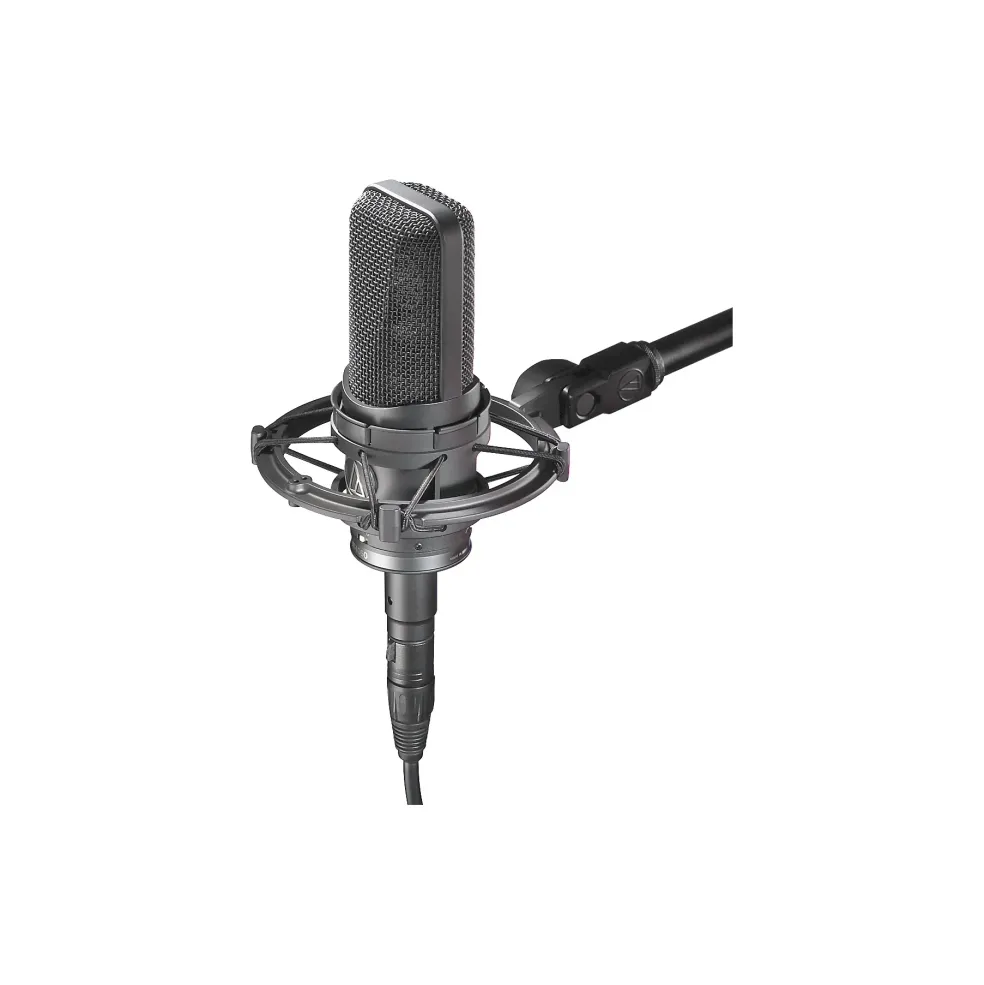

- Custom shock mount provides superior isolation
- Element: exterally-polarized (DC bias) condenser
- Polar pattern: cardioid, omnidirectional, figure-of-eight
- Frequency response: 80-18,000Hz
- Low frequency roll-off: 80Hz, 12dB/octave
- Open circuit sensitivity: -36dB (15.8 mV) re 1V at 1 Pa
- Impedance: 100 ohms
- Maximum input sound level: 149dB SPL, 1kHz at 1% T.H.D., 159dB SPL, with 10dB pad (nominal)
- Dynamic range (typical): 132 333dB, 1kHz at Max SPL
- Signal-to-noise ratio: 77dB, 1kHz at 1Pa
- Phantom power requirements: 48V DC, 4.2 ma typical
- Switches: polar selection; flat, roll-off; 10dB pad (nominal)
- Weight: 18.0 oz. (510 g)
- Dimensions: 7.40″ (188.0 mm) long, 2.10″ (53.4 mm) maximum body diameter
- Output connectors: Integral 3-pin XLRM-type
- Accessories furnished: AT8449 shock mount for 5/8″-27 threaded stands; microphone dust cover; protective carrying case
- Audio-Technica case style: R1
