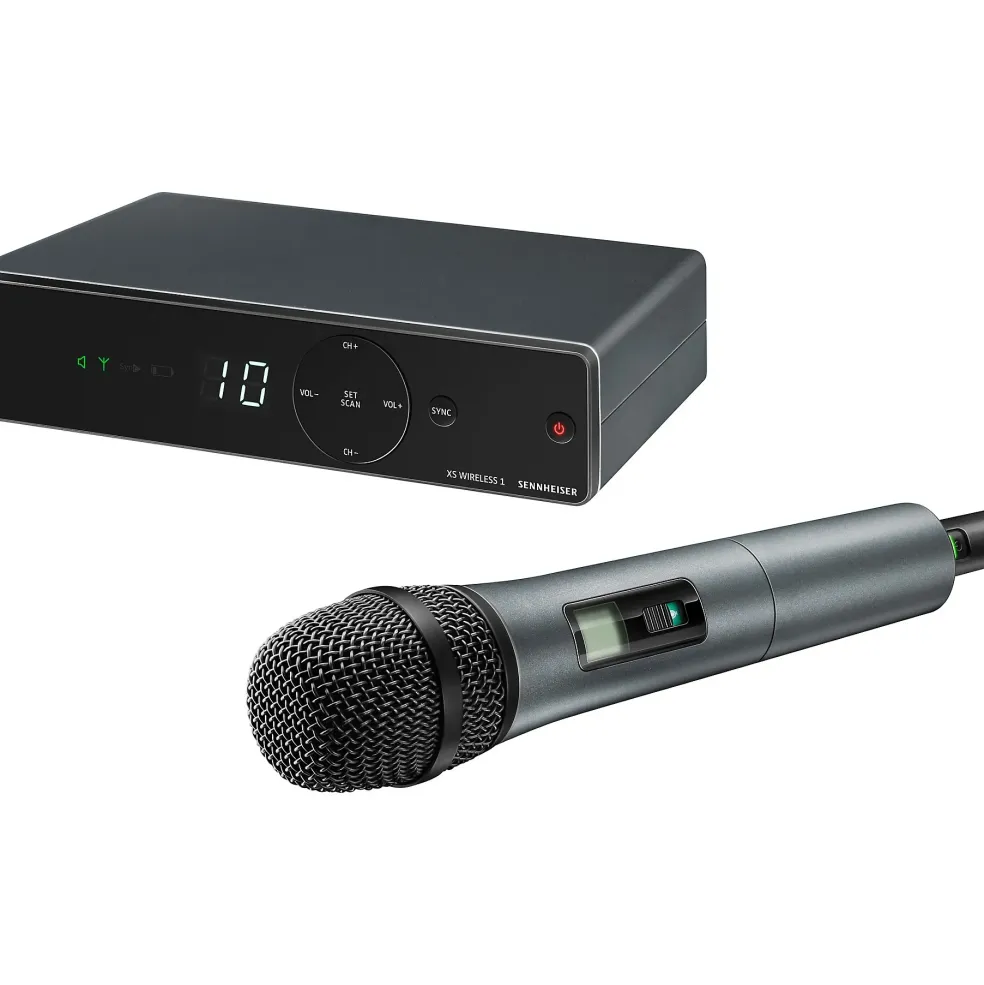

Sennheiser XSW 1-835 Handheld Wireless System

Original price was: $349.00.Current price is: $132.89.

SKU: SKU1500000049315 Categories: Live Sound, Microphone & Wireless Systems, Mics & Wireless, Wireless Systems Tag: Sennheiser Brand: Sennheiser

Description
Reviews (0)

Sennheiser’s XSW 1-835 is a solid wireless transmission that offers up to 10 compatible channels in a stable UHF band. The XSW 1 VOCAL SET is an easy-to-use all-in-one wireless system for singers and presenters, excellent for live sound that features Sennheiser’s renowned evolution microphone capsules, e 835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

Excellent live sound featuring Sennheiser’s renowned e 835 evolution microphone capsule
Antenna-switching diversity reception
Integrated antennas
Automatic frequency management and synchronization via remote channel for easy setup
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels

Dimensions: Approx. 200 x 42 x 127 mm

THD, total harmonic distortion: ≤ 0.9%

Pickup pattern: Cardioid

Signal-to-noise ratio: ≥ 103 dBA

RF output power: 10 mW

Switching bandwidth: Up to 24mHz

Operating time: Approx. 10 hr.

Modulation: Wideband FM

Output voltage: 1/4″ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

Housing: Rugged ABS housing

Dynamic range: Dynamic

Frequency: 8 frequency banks, each with up to 10 factory-preset channels

Frequency range: A: 548–572mHz, GB: 606–630mHz, B: 614–638mHz, C: 766–790mHz, D: 794–806mHz, E: 821–832mHz, 863–865mHz, K: 925–937.5mHz

Sensitivity: < 3 μV at 52dB(A)rms S/N

Squelch: Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)

Synchronization: 2.4GHz, low power OQPSK (only active during synchronization)

Input sensitivity: 1.5 mV/Pa

Adjustment Range Transmitter: 0 to -30dB, adjustable in 10dB steps

Audio adjustment range: 45dB, adjustable in 5dB steps

Line/Mic level: 20dB, switchable

Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C

Receiver Principle: Double superheterodyne

Diversity principle: Antenna switching diversity via internal

Receivers

Weight: Approx. 340 g
Power supply: Receiver: 12 V DC nom. / 300 mA
AF frequency response: Receiver: 50Hz to 16kHz (–3dB)

Microphone

Weight: Approx. 245 g
Power supply: Microphone: 2 AA size batteries, 1.5V
AF frequency response: SKM 825: 80Hz–14kHz, SKM 835: 80Hz–16kHz
