Choose from one of four bandwidths:
H9: 512–542mHz
H10: 542–572mHz
H11: 572–596mHz
J11: 596–616mHz

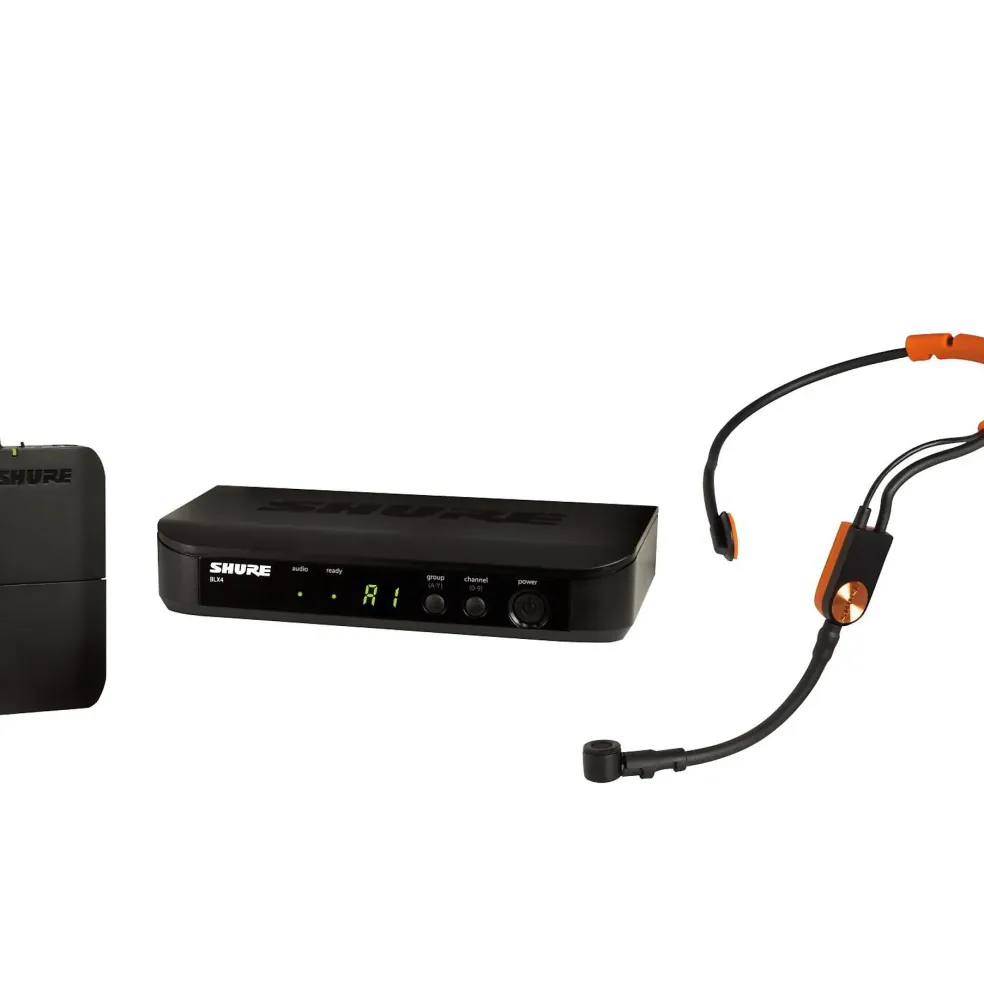

BLX1
The BLX series bodypack transmitter works with lavalier and headset microphones. With the WA302 1/4″ to TA4F cable, it also works for electric guitar or bass. The beltpack features an On/Off hard toggle switch, preferring to eliminate the multi-function push button that is used on some wireless transmitters. Many users found the multi-function single button to be inconvenient and unreliable.It additionally features continuously adjustable gain, a single bi-color LED for battery status, and a rugged ABS polymer body. It operates on two AA batteries for up to 14 hours of battery life. Its sleek, side taper design makes it a comfortable fit on your belt.
BLX4
The durable BLX4 features simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference.
SM31FH
Cardioid condenser headset microphone for wireless systems features hydrophobic construction that repels moisture. For use in fitness instruction.
- Frequency response (TX): 45Hz–20kHz
- Maximum SPL: 145dB
- RF output power: 10mW
- Adjacent channel rejection: 60dB
- Intermodulation rejection: 50dB
- Diversity design: True diversity
- THD: < 1 %
- Signal to noise 66dB(A)
Range
- Line of sight: 300′
- Obstructions: 100′
Microphone
- Capsule: Electret condenser
- Pattern: Cardioid
- Type: Headset
Battery
- Type: AA x 2
- Life: 14 hours
Frequencies
- Available frequencies: 8
- Bandwidth: 24mHz
- Presets: 8
- Banks: 1
Construction
- Transmitter: ABS plastic
- Receiver: ABS plastic
Dimensions
- Receiver: 7-3/8 x 4 x 1-5/8″
- Transmitter: 4-3/8 x 1/2 x 7/8″
Weight
- Receiver: 8.5 oz.
- Transmitter: 2.6 oz.
- Type: Electret Condenser
- Frequency Response: 45 to 20,000 Hz
- Polar Pattern: Unidirectional (Cardioid)
- Output Impedance @ 1 kHz: 600 ÃŽ
- Audio Output Level: -50 dBV/Pa
- Signal-To-Noise Ratio[1] @ 1 kHz: 66 dB
- Maximum SPL[1] 1000 ÃŽ load, @ 3% THD: 145.0 dB
- Dynamic Range[1] @ 1 kHz, 1000 ÃŽ load: 117.0 dB
- Equivalent Output Noise[1] Typical, A-Weighted: 28 dB
- Power Requirements: +5 V DC (nominal), 10 V maximum (DC bias)
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
- Cable: 1.1 m (45 in.)
- Connector: TA4F
- Net Weight: 60 g (2.11 oz.)
| Color | Band H9 |
|---|
