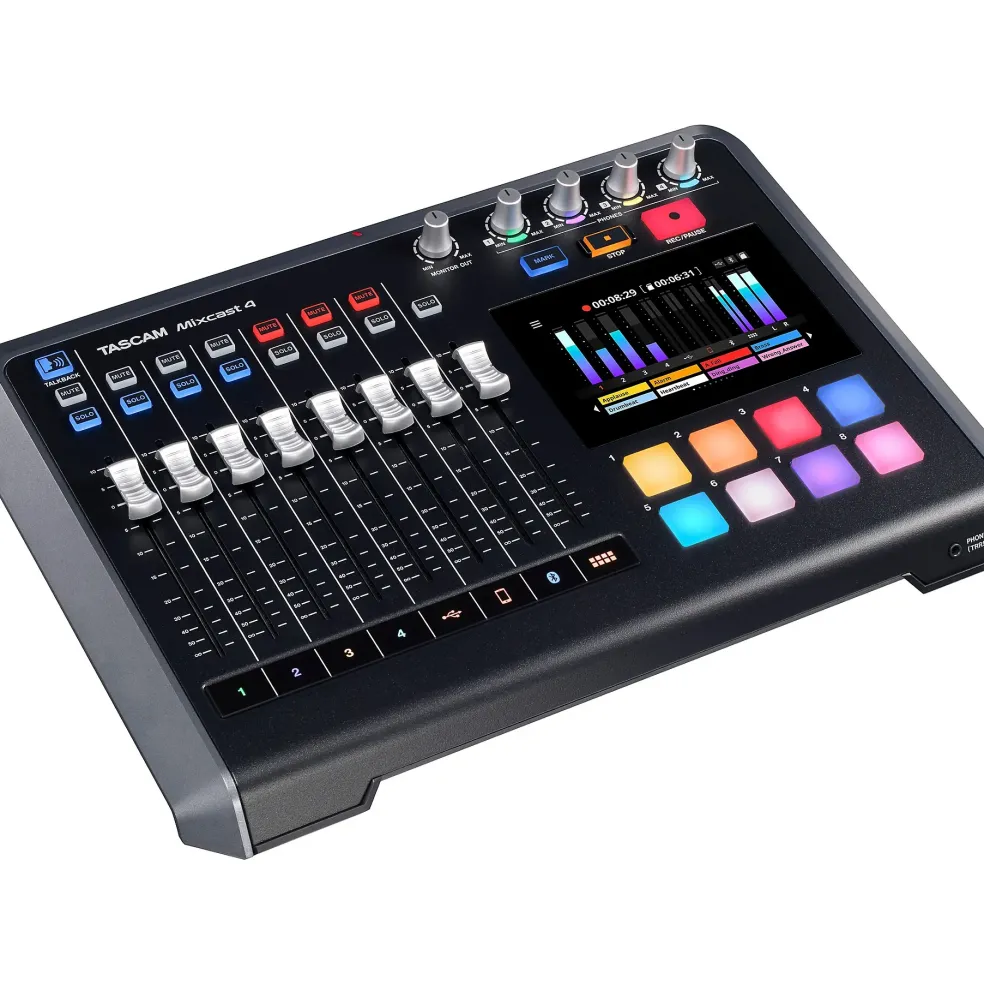

TASCAM Mixcast 4 Integrated Podcast Production Studio

TASCAM Mixcast 4 Integrated Podcast Production Studio

$138.99

SKU: SKU1500000344260 Categories: Audio Recorders, Recording Tag: TASCAM Brand: TASCAM

Description
Reviews (0)

The TASCAM Mixcast 4 all-in-one podcast production studio makes professional quality content creation easier than ever. Great for podcasting, live streaming, voiceover and more, the Mixcast 4 is a one-stop workstation that can record and mix sound sources without complicated settings. Equipped with four mic inputs and four individual headphone outputs, the TASCAM Mixcast 4 includes an auto-mixing function that automatically sets mic priority. The Mixcast 4 also features sound pads that allow for fun voice effects such as voice transformation and to make live-streams and recordings even more entertaining. With TASCAM Podcast Editor software included for waveform editing and sound pad control, the Mixcast 4 production studio takes you from pre-production to completion.

TASCAM Mixcast 4 Main Features

Stress-free auto-mixing
Real-time sound effects
Multiple connectivity options
TASCAM Podcast Editor Software

Audio Creation Made Easy

The TASCAM Mixcast 4 handles everything from podcast creation and live streaming to event production and voiceover work. Easily mix and record mic inputs, trigger pads, internal sounds and even external audio from your phone or PC simultaneously. Always ready for production, the Mixcast 4 includes an auto-mixing function that automatically sets mic priorities with no troublesome configuration know-how to get that perfect mix. The Mixcast 4 also showcases a 5″ color touch screen that provides quick access to intuitive control settings.

Enhance Content With Internal Effects

In addition to preset sound effects, the Mixcast 4 comes with fully customizable sound pads. Users can flexibly assign new sounds or even pre-recorded audio to the pads for virtually endless sampling possibilities. The Mixcast 4 sound pads also allow for easy and on-time voice effects such as voice transformation, reverb and more to make live-streams and recordings even more fun and memorable.

Versatile Connectivity for Recording Sources

From audio recording to post-production mixing, the Mixcast 4 is a one-stop solution that offers multiple ways to get connected. Record directly onto the unit’s SD card, hook up wirelessly via Bluetooth, easily mix and record phone conversations with a handy 3.5mm AUX IN or even connect to a PC and import sounds from a computer.

Improve Production Workflow and Inspiration

The Mixcast 4 is bundled with the TASCAM Podcast Editor software. The Podcast Editor is designed specifically for the Mixcast 4 and seamlessly integrates for a comprehensive production platform. The software can assign content and sound effects to the internal touchpads, allow for smooth and easy remote track arming, effects assignment, audio editing and more.

Dive into content creation, podcasting and audio production with the TASCAM Mixcast 4 podcast station. There’s no need for complicated understanding of DAWs or software to capture clear, professional-quality audio. Take your podcast from start to finish, add sound effects and even record remotely via Bluetooth, TRRS or USB with the simple yet versatile Mixcast 4.

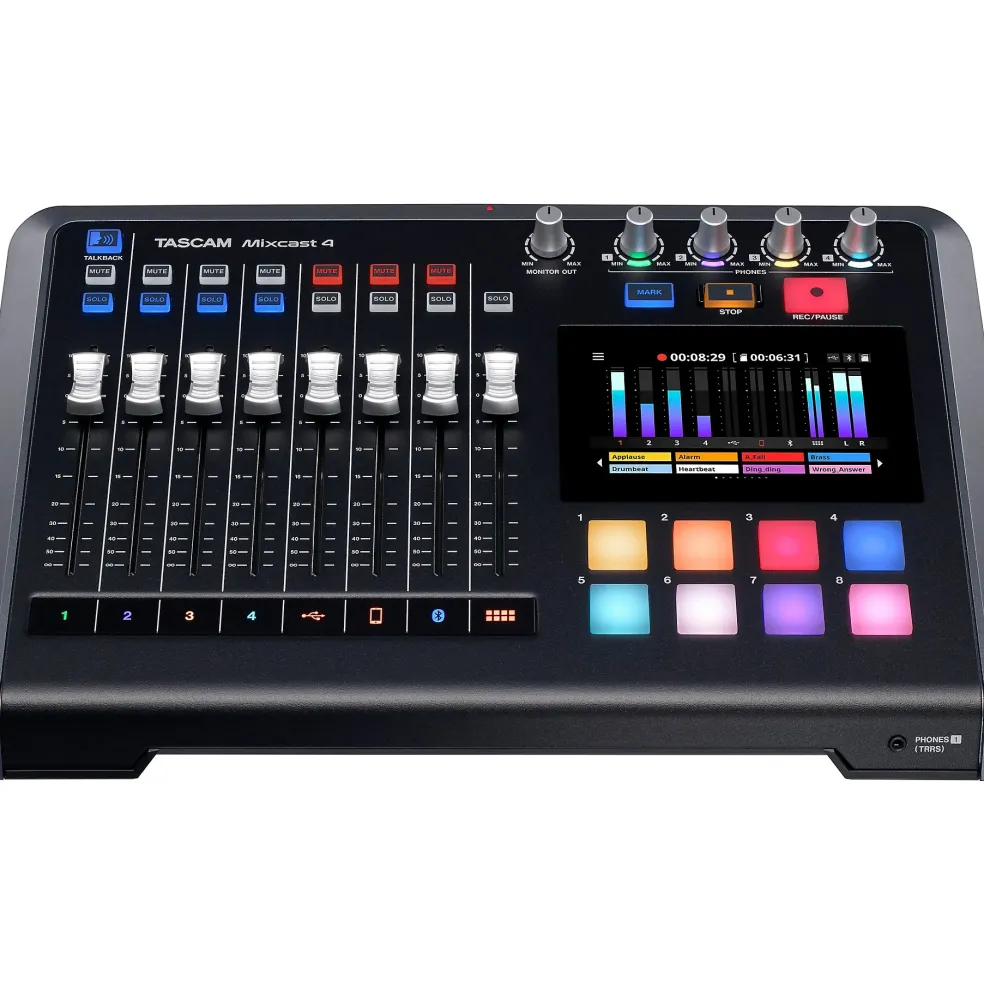

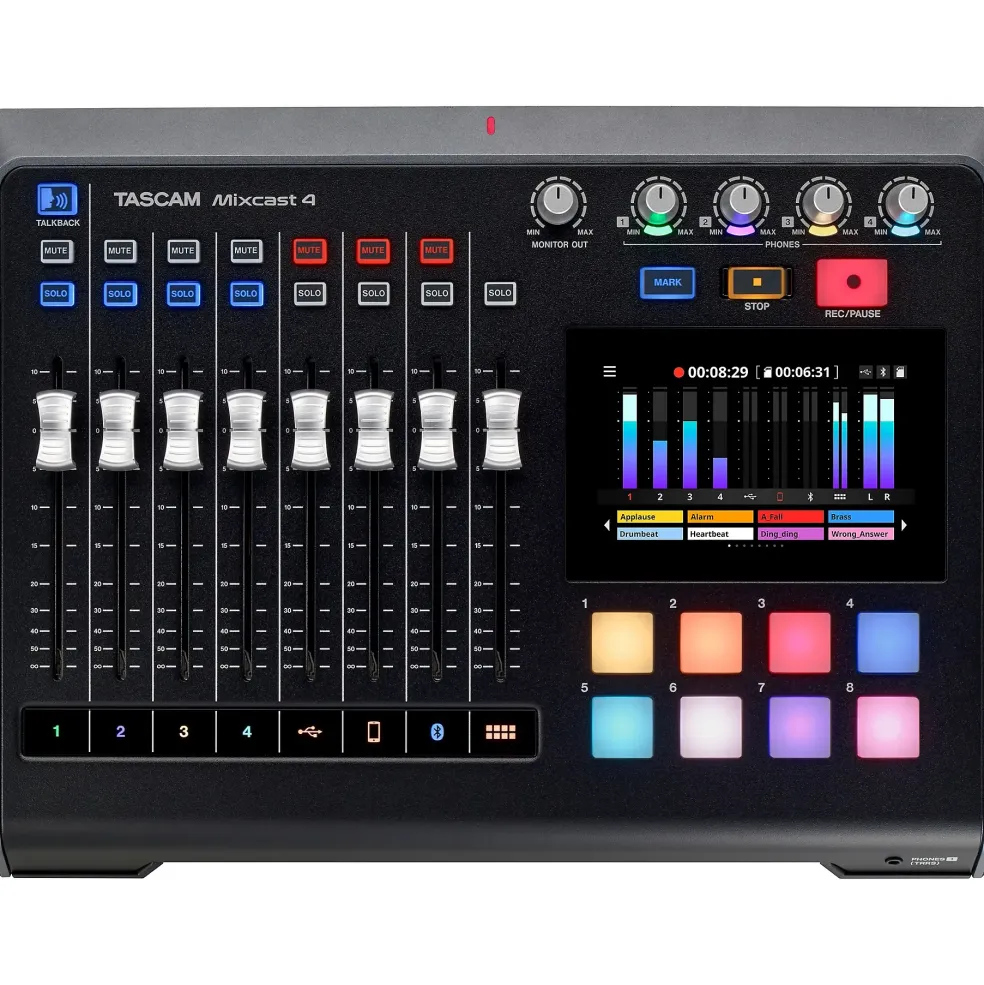

Easy and intuitive control using the 5″ touch panel

Versatile mixer for podcast productions of up to 4 people

Direct multitrack recording to SD card (up to 14 tracks)

Bluetooth connection allows mixing and recording phone calls wirelessly with mix minus

14-in/2-out USB audio interface mode

Bundled with a dedicated TASCAM Podcast Editor to cover the entire system workflow

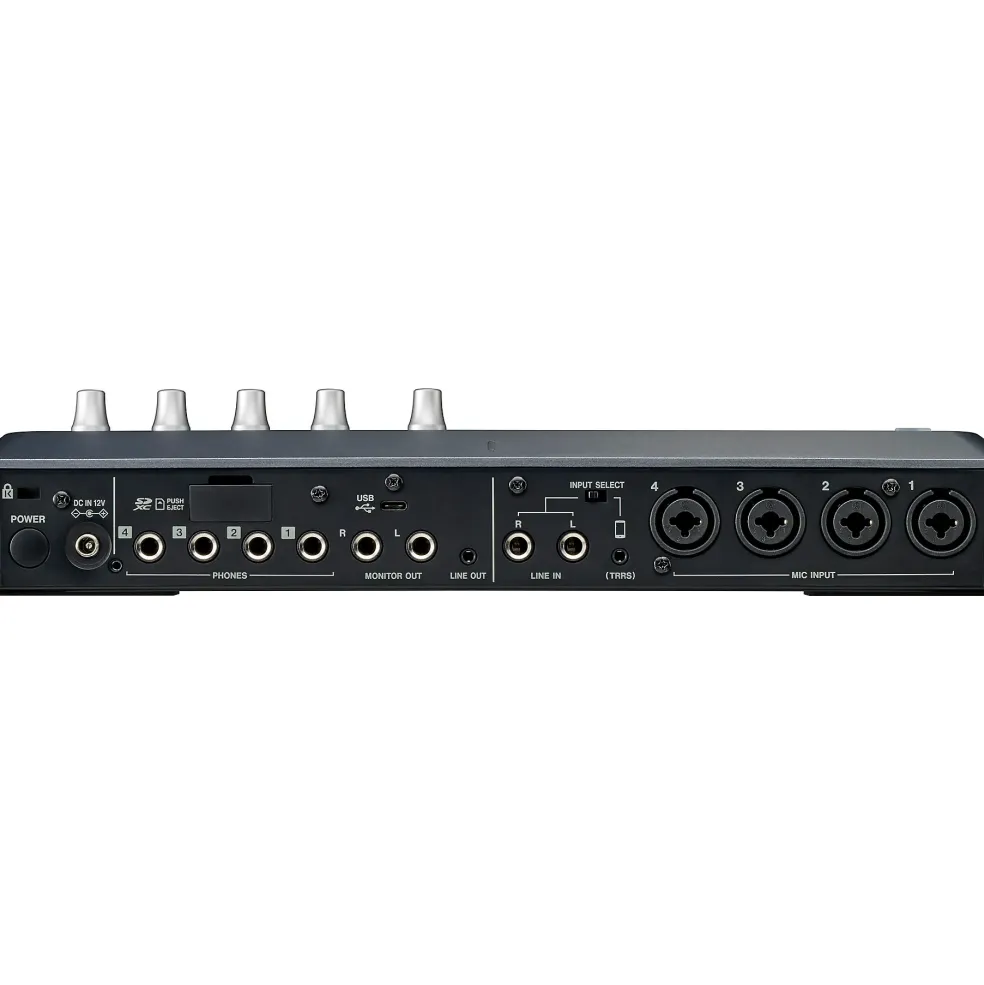

4 mic Inputs (TRS/XLR combo jacks)

4 headphone outputs with independent volume control

Stereo Line IN (selectable between TRS and 3.5 mm TRRS)

8 sound pads x 8 Banks

Main Monitor Out (TRS) and Stereo Line Out (3.5 mm)

3.5 mm TRRS headphone out (Mirror output of headphone 1)

Noise-free DC powered IN with screw lock

Included Items

Power adapter PS-P520U
Owner’s manual (warranty included)

Recorder specifications

Recording media: SD cards (64MB to 2GB), SDHC cards (4GB to 32GB), SDXC cards (48GB to 512GB)
Recording/playback formats: WAV (BWF)48kHz, 24-bit, 2-channel stereo/14-channel poly
Max. recordable tracks: 14 tracks (12 track + 2 mix)

Analog audio input ratings

MIC INPUT jacks (1-4)

Connectors: XLR/TRS combo jacks
XLR: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
TRS: 6.3 mm (1/4″) standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level: +10 dBu (when LEVEL at min.)
Nominal input level: -10 dBu (when LEVEL at min.)
Minimum input level: -76.5 dBu (when LEVEL at max.)
Gain range: 66.5dB
Input impedance: 2.1kOhm
PHONES (TRRS) 1 jack (CTIA standard)

Connector: 3.5 mm (1/8″) 4-pole mini jack
Maximum input level: +4 dBV (when LEVEL at min.)
Nominal input level: -16 dBV (when LEVEL at min.)
Minimum input level-82.5 dBV (when LEVEL at max.)
Gain range66.5 dB
Input impedance2 kΩ
LINE IN (TRRS) jack (CTIA standard)

Connector: 3.5 mm (1/8″) 4-pole mini jack
Maximum input level: +8 dBV
Nominal input level: -12 dBV
Input impedance: 12 kOhm
LINE IN L/R (balanced) jacks

Connectors: 6.3 mm (1/4″) standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level: +24 dBu
Nominal input level: +4 dBu
Input impedance: 11 kOhm

Analog audio output ratings

PHONES jacks (1-4)

Connectors: 6.3mm (1/4″) standard stereo jacks
Maximum output45 mW + 45 mW (0.1% THD+N or less, into 32Ω load)
PHONES (TRRS) 1 jack (CTIA standard)

Connector: 3.5 mm (1/8″) 4-pole mini jack, PHONES (TRRS) 1 output splits from PHONES 1 output
LINE OUT (TRRS) jack (CTIA standard)

Connector: 3.5 mm (1/8″) 4-pole mini jack
Maximum output level: -25 dBu
Nominal output level: -45 dBu
Output impedance: 100Ohm
MONITOR OUT L/R (balanced) jacks

Connectors: 6.3mm (1/4″) standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level: +20 dBu
Nominal output level: +0 dBu
Output impedance: 200Ohm
LINE OUT jack

Connector: 3.5mm (1/8″) stereo mini jack
Maximum output level: +6 dBv
Nominal output level: -14 dBv
Output impedance: 200Ohm

Control input/output

USB port

Connector: USB Type-C
Formats: USB 2.0 HIGH SPEED, USB AUDIO CLASS 2.0, USB MASS STORAGE CLASS
Bluetooth
Output class: 2 (about 10 m* unobstructed transmission distance)
Supported profile: A2DP
Supported A2DP codecs: SBC, AAC
Supported A2DP content protection: SCMS-T
Recording times (in hours: minutes)
Recording format: 24-bit / 48kHz WAV
14 channel: 0:35 (4GB) / 1:10 (8GB)
2 channel: 4:07 (4GB) / 8:15 (8GB)
The recording times shown above are not continuous recording times. They are total recordable times for SD/SDHC/SDXC cards.
Power

Dedicated AC adapter (PS-P1220E NUT), DC 12 V
Power consumption: 12.5W (maximum)
Other

WxHxD in mm: 374.8 x 56.5 x 263.6 mm (excluding protrusions),
374.8 x 71.2 x 266.7 mm (including protrusions)
Weight: 2.55 kg
Operating temperature range0–40°C
Included items: AC adapter (PS-P1220E NUT), USB Type-C to Type-C cable, Owner’s manual (inc. warranty)
*The transmission distance is an estimate. The transmission distance may vary depending on the surrounding environment and radio wave conditions.

Audio Performance

Mic amp EIN (equivalent input noise): -125 dBu or less (150Ω termination, LEVEL at max.)
Frequency response: Mic input jacks (1-4), 20Hz–20kHz: +0.3dB/-0.3dB (JEITA)
S/N ratio: 101dB (Mic input jacks (1-4), channel faders at 0, 20kHz SPCL LPF +A-Weight)
Distortion: 0.003% (Mic input jacks (1-4), 1kHz sine wave, channel faders at 0, 20kHz SPCL LPF)
Crosstalk: 95dB or more (Note: Measurement conditions conform to JEITA CP-2905B)

Supported OS

Windows
Windows 11 New, Windows 10 (November 2021 Update) New, Windows 10 (May 2021 Update)
Mac
macOS Monterey New, macOS Big Sur, macOS Catalina
iOS
iOS 15 New, iPadOS 15 New, iPadOS 14, iOS 14, iPadOS 13, iOS 13
