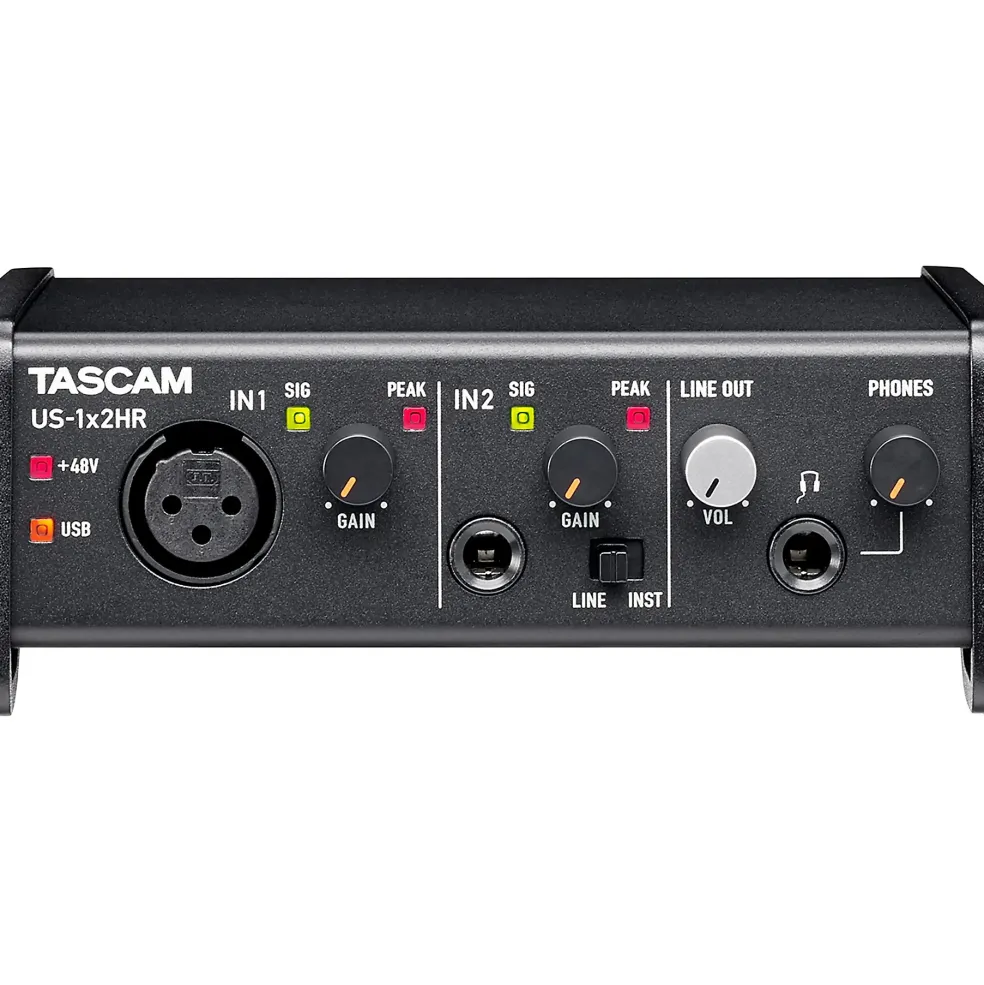

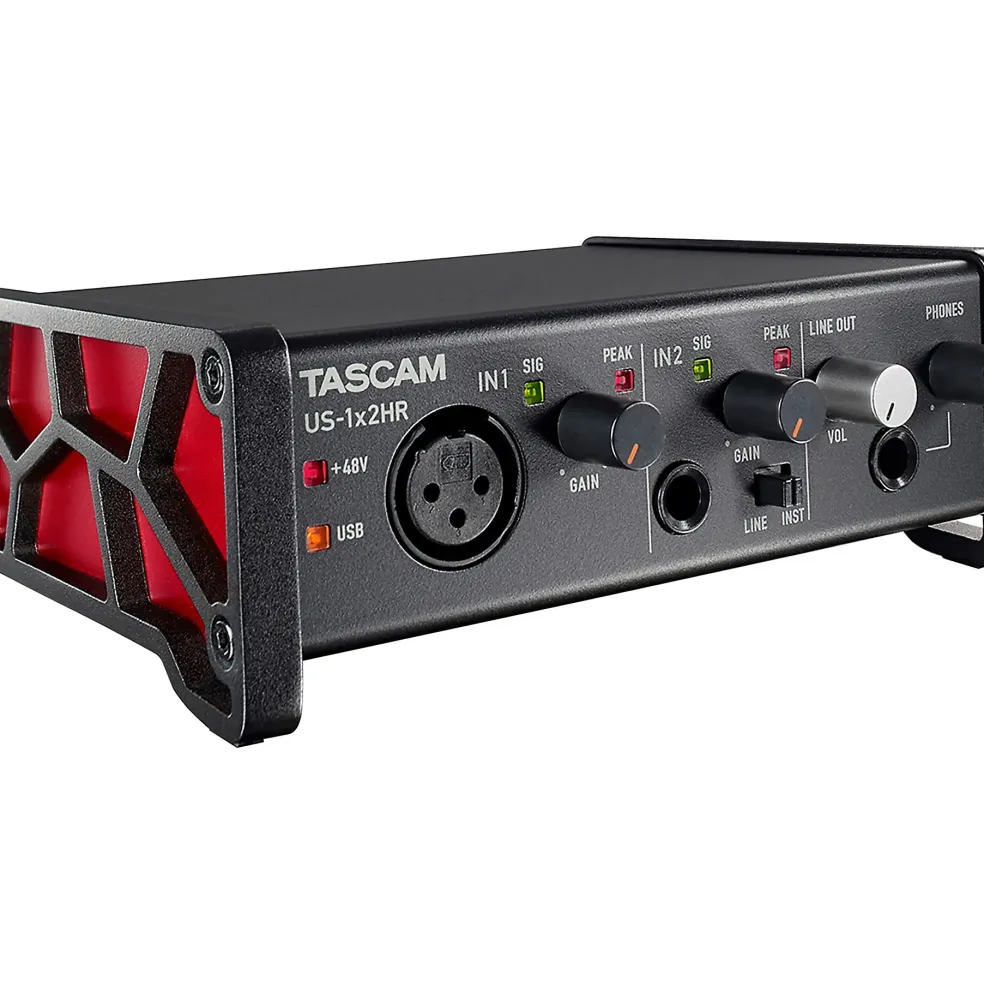

TASCAM US-1X2HR 2-Channel USB Audio Interface

• 44.1k/48k/88.2k/96k/176.4k/192kHz

Quantization bit rate

• 24-bit

MIC IN (IN 1) Connector

• XLR-3-31 (1:GND, 2:HOT, 3:COLD), BALANCED

Input impedance

• 2.4k ohms

Maximum input level

• (GAIN:MIN) +9dBu (2.183Vrms)

Gain

• 58dB

LINE/INST IN(IN 2)

• LINE IN

Connector

• 6.3 mm (1/4″) TRS-jack (T:HOT, R:COLD, S:GND), BALANCED
• * When set to “LINE” at LINE/INST switch

Input impedance

• 0k ohms

Maximum input level

• (GAIN:MIN) +20dBu (7.75Vrms)
• 45dB

INST IN

• Connector 6.3 mm(1/4″) TS-jack (T:HOT, S:GND), UNBALANCED
• * When set to “INST” at LINE/INST switch

Input impedance

• 1M ohms or more

Maximum input level

• (GAIN:MIN) +3dBV (1.1425Vrms)
• 45dB

LINE L/R IN Connector

• RCA pin-jack, UNBALANCED

Input impedance

• 10k ohms

Maximum input level

• +6dBV(1.9953Vrms)

Analog audio outputs LINE OUT

• Connector
• RCA pin-jack, UNBALANCED
• Output impedance
• 100 ohms
• Maximum output level
• +6dBV (1.995Vrms)

PHONES

• Connector
• 6.3 mm (1/4″) stereo phone jack
• Maximum output level
• 18mW+18mW or more
• (THD+N 0.1% or less, 32 ohms loaded)
• Control IN/OUT
• USB
• Connector
• USB Type-C
• Format
• USB 2.0 HIGH SPEED (480Mbps)
• DC IN 5V
• Connector
• USB Micro B type

Power

• When connected PC USB bus powered
• When connected iOS USB power adapter (that can supply 5V and a current of at least 700mA)*1
• External battery pack (that can supply 5V and a current of at least 700 mA)*2

Power consumption

• 1.8W

Dimensions (WxHxD)

• 146 × 55 × 120 mm (including protrusions)

Weight

• 623g

Operating temperature

• 5 to 35°C
• *Strongly recommend using TASCAM PS-P520E AC adapter or the USB power adapter included with the iPad/iPhone. No USB power adapter is included with an iPod touch. To use it with an iPod touch, purchase a genuine Apple USB power adapter (that can supply 5V and a current of at least 700mA) separately.
• *2 We strongly recommend using a TASCAM BP-6AA external battery pack. If using another external battery pack or mobile battery, purchase one that can supply 5V and a current of at least 700mA.

Computer system requirements

• Windows
• Compatible computers Windows computer with a USB 2.0 (or higher) port
• CPU type/speed 2GHz or faster dual core processor (x86)
• Memory 2GB or more
• Driver ASIO ASIO2.0, WDM
• Mac
• Compatible computers Mac with a USB 2.0 (or higher) port
• CPU type/speed 2GHz or faster dual core processor
• Memory 2GB or more
• Driver Core Audio
• iOS/iPadOS divice
• Driver
• Core Audio
• Supported OS’
• Windows
• Windows 10 (October 2020 Update) New , Windows 8.1 , Windows 7
• Mac
• macOS Big Sur New , macOS Catalina , macOS Mojave , macOS High Sierra (10.13) iOS
• iPadOS 14 New , iOS 14 New , iPadOS , iOS 13 , iOS 12
• Accessories
• USB cables (Type-A to Type-C)
• Set of DAW software installation guides
• Set of DAW plug-in software installation guides
• Owner’s Manual (including warranty)
