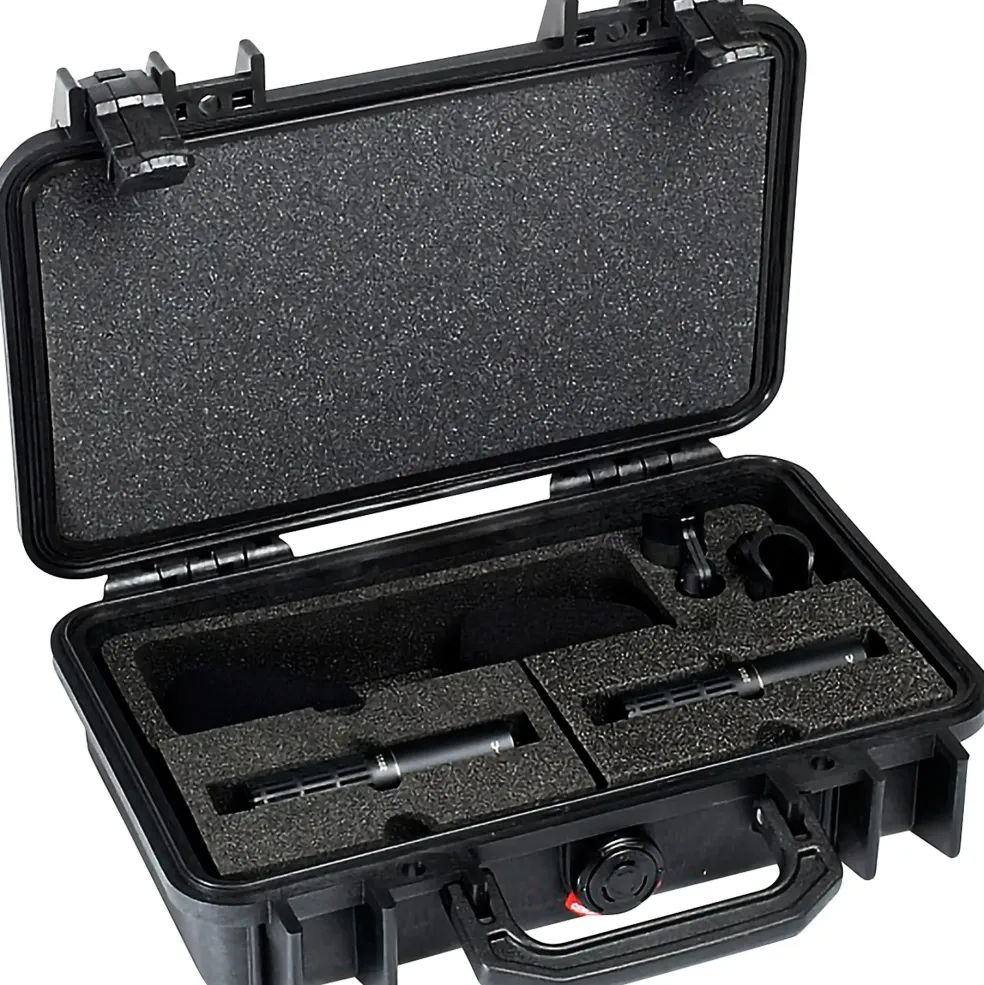

DPA Microphones 2011A Stereo Pair With Clips and Windscreens in Peli Case

$132.89

SKU: SKU1500000408467 Categories: Condenser Microphones, Mics & Wireless Tag: DPA Microphones Brand: DPA Microphones

Description
Reviews (0)

The DPA Microphones 2011A Stereo Pair mics are acclaimed for their close-miking excellence and hi-SPL handling. Optimized for onstage use, these mics have been used on many stages as well as recording sessions. They exhibit a previously unheard blend of clarity, richness and dynamic range. The off-axis response is linear but in a smaller frequency bandwidth. This makes stage separation and gain-to-feedback higher, and the mic level is easier to control.

The foam design in the heavy-duty transportation box allows for fast and easy exchange of the microphone/accessory inlays.

The wide and versatile pencil mic series is legendary in the high-end recording and film production industry. Delivering clean, accurate sound, the mics in this series are used by professionals, who understand sound and insist on only using the best.

Modularity – interchangable capsules and preamplifiers
Up to 120 dB dynamic range
RF rejection between >60 and >40 dB
Linear frequency response
High SPL
Superior gain before feedback

Directional pattern: Cardioid
Principle of operation: Pressure gradient, with interference tube
Cartridge type: Pre-polarized condenser, Twin Diaphragm Capsule
Frequency response: 20 Hz – 20 kHz
Effective frequency range, ±2 dB, at 30 cm (11.8 in): 50 Hz – 17 kHz with 3 dB soft boost at 12 kHz
Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 33 dB (max. 36 dB)
Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
Dynamic range: Typ. 117 dB
Max. SPL, THD 10%: 153 dB SPL peak
Switchable attenuator, filters etc.: 0 dB / -20 dB
Rated output impedance: 200 Ω
Minimum load impedance: 2 kΩ
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing with Active Drive
Common mode rejection ratio (CMRR): > 60 dB
Power supply (for full performance): P48 (Phantom Power)
Current consumption: 2.8 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase
Color: Matte black
Weight: 164 g (5.8 oz)
Microphone diameter: 19 mm (0.75 in)
Microphone length: 198 mm (7.8 in)
Maximum output voltage, RMS: 8 V
Polarity: +V at pin 2 for positive sound pressure
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
Sensitivity selection tolerance (at 1 kHz): ±1.5 dB
