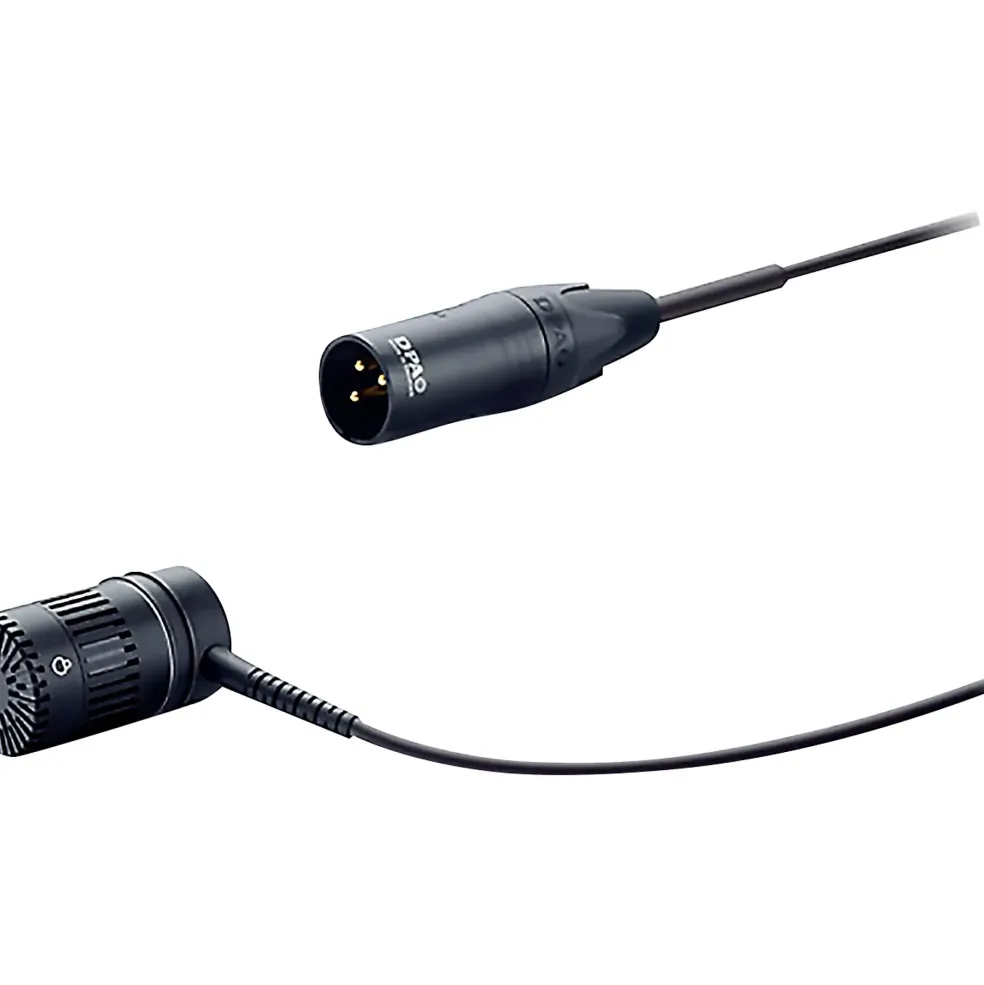

DPA Microphones 4018ES Supercardioid Mic, Side Cable, XLR
$122.89
The 4018ES Supercardioid Microphone combines the MMC4018 Supercardioid Microphone Capsule with the MMP-ER/ES Modular Active Cable, XLR, an integrated cable solution with side cable entry. It’s designed for a broad range of music recording and broadcast/ENG/film long-distance miking applications. It’s ideal for use as spot or hanging mic for orchestra recording situations when used with the SM4000-C Suspension Mount, which is included in the package. This allows the 4018ES to be hung from the ceiling and create precision spot miking of orchestra sections or ambience atmosphere.
- Low noise and high sensitivity
- Highly directional for high isolation
- Most controlled supercardioid shape
- Uniform, frequency independent directionality
- Modular flexibility
- Directional pattern: Supercardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency response: 20 Hz – 20 kHz
- Effective frequency range, ±2 dB, at 30 cm (11.8 in): 40 Hz – 18 kHz
- Sensitivity, nominal, ±2 dB at 1 kHz: 12 mV/Pa; -38.4 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 16 dB(A) re. 20 µPa (max. 19 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 23 dB (max. 26 dB)
- Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
- Dynamic range: Typ. 121 dB
- Max. SPL, THD 10%: 142 dB SPL peak
- Rated output impedance: 100 Ω
- Minimum load impedance: 2 kΩ
- Cable drive capability: 100 m (328 ft)
- Output balance principle: Impedance balancing
- Common mode rejection ratio (CMRR): > 40 dB
- Power supply (for full performance): P48 (Phantom Power)
- Current consumption: 3.5 mA
- Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase
- Color: Matte black
- Weight: 3.8 oz
- Microphone diameter: 0.75″
- Capsule diameter: 0.75″
- Microphone length: 1.38″
- Maximum output voltage, RMS: 2.2 V
- Polarity: +V at pin 2 for positive sound pressure
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
- Matching tolerance (frequency response and sensitivity): ±1 dB
- Phase deviation for kit: < 10°
