- Frequency response: 20Hz to 20kHz
- Max SPL: 146 dB
Pattern and type
- Capsule: Condenser
- Pattern: Cardioid
- Type: Mounted
- Applications: Studio, stage, theatrical
- Phantom power required: Yes
Size and weight
- Length: 3.6
- Weight: 2.3 oz.
Included accessories

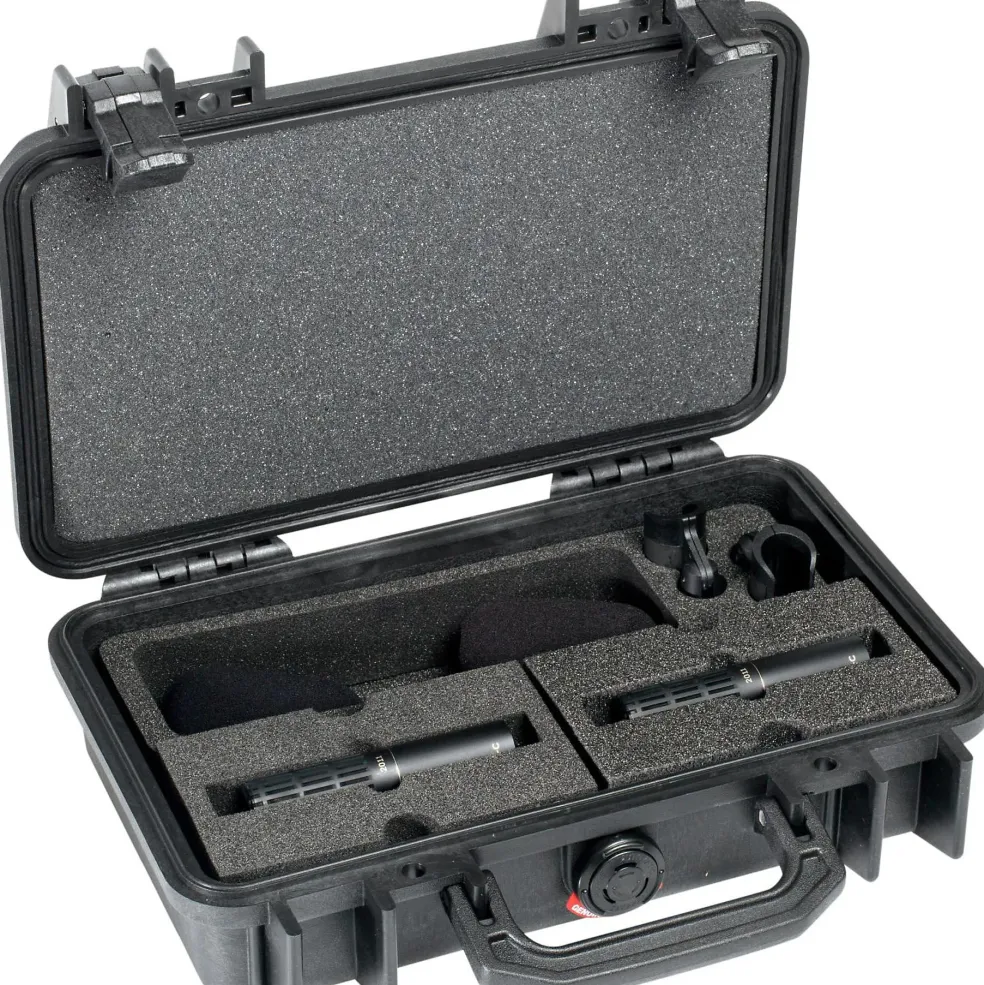

- Case: Hard case
- Clip: Hard rubber
- Power supply: No
- Directional pattern: Cardioid
- Principle of operation: Pressure gradient, with interference tube
- Cartridge type: Pre-polarized condenser, Twin Diaphragm Capsule
- Frequency range: 20 Hz – 20 kHz
- Frequency range, ± 2 dB, at 30 cm: 50 Hz – 17 kHz with 3 dB soft boost at 12 kHz
- Sensitivity, nominal, ± 2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 20 dB(A) re. 20 Pa (max. 23 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 33 dB (max. 36 dB)
- S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 74 dB(A)
- Total Harmonic Distortion (THD) at 1 kHz: < 1 % up to 137 dB SPL peak
- Dynamic range: Typ. 117 dB
- Max. SPL, peak before clipping: 146 dB
- Minimum load impedance: 2 kohm
- Output impedance: < 200 ohm
- Cable drive capability: 100 m (328 ft)
- Output balance principle: Impedance balancing with Active Drive
- Common Mode Rejection Ratio (CMRR): > 50 dB
- Power supply (for full specifications): 48 V Phantom power (± 4 V)
- Current consumption: 2.8 mA
- Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase
- Color: Matte black
- Weight: 64 g (2.3 oz)
- Microphone diameter: 19 mm (0.75 in)
- Microphone length: 92 mm (3.6 in)
- Output voltage, RMS: > 4 V
- Polarity: +V at pin 2 for positive sound pressure
- Temperature range: -40 C to 45 C (-40 F to 113 F)
- Relative Humidity (RH): Up to 90%
- Sensitivity selection tolerance (at 1 kHz): ± 1.5 dB
