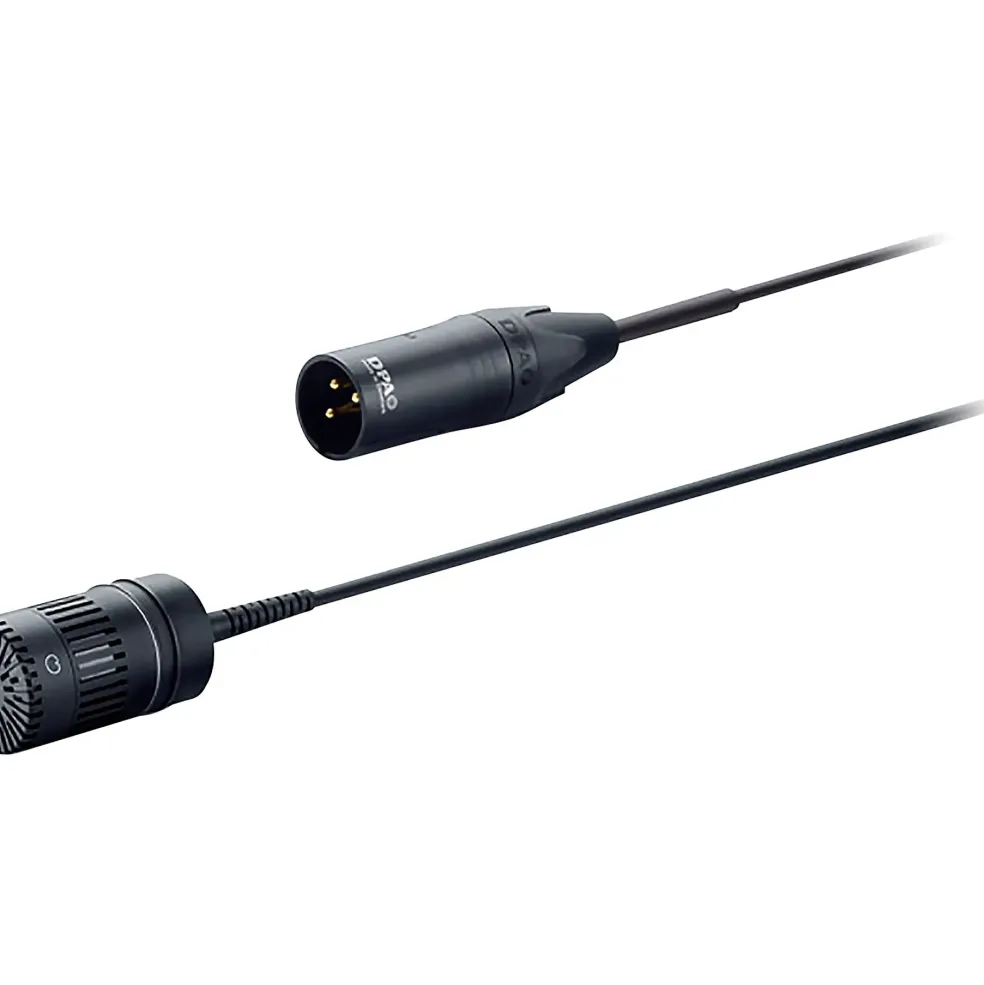

The principal appeal of the 4011ER Cardioid Mic is its directional quality and attention to detail. This mic makes everything sound like the original. The first-order cardioid pickup pattern provides superb separation between sound sources. It’s equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments and vocals as it is for spot-miking symphonies. It can also handle incredibly high sound pressure levels.
A flat on-axis frequency response and excellent phase response deliver a faithful reproduction of the original sound. The off-axis response is similarly smooth so that any leakage is an accurate reflection of the original, though attenuated according to the true first-order cardioid pickup pattern.
- Outstanding audio quality
- Wireless podium mic capability
- Highly directional – very isolated
- High rejection of radio frequency interference
- Sleek Scandinavian design
- Directional pattern: Cardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency response: 20 Hz – 20 kHz
- Effective frequency range, ±2 dB, at 30 cm (11.8 in): 40 Hz – 20 kHz
- Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB (max. 27 dB)
- Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
- Dynamic range: Typ. 121 dB
- Max. SPL, THD 10%: 144 dB SPL peak
- Rated output impedance: 100 Ω
- Minimum load impedance: 2 kΩ
- Cable drive capability: 100 m (328 ft)
- Output balance principle: Impedance balancing
- Common mode rejection ratio (CMRR): > 40 dB
- Power supply (for full performance): P48 (Phantom Power)
- Current consumption: 3.5 mA
- Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase
- Color: Matte black
- Weight: 109 g (3.8 oz)
- Microphone diameter: 0.75″
- Capsule diameter: 0.75″
- Microphone length: 1.38″
- Maximum output voltage, RMS: 2.2 V
- Polarity: +V at pin 2 for positive sound pressure
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
- Matching tolerance (frequency response and sensitivity): ±1 dB
- Phase deviation for kit: < 10°
